6Ć21 Removal and ReplacementC4699Ć90000

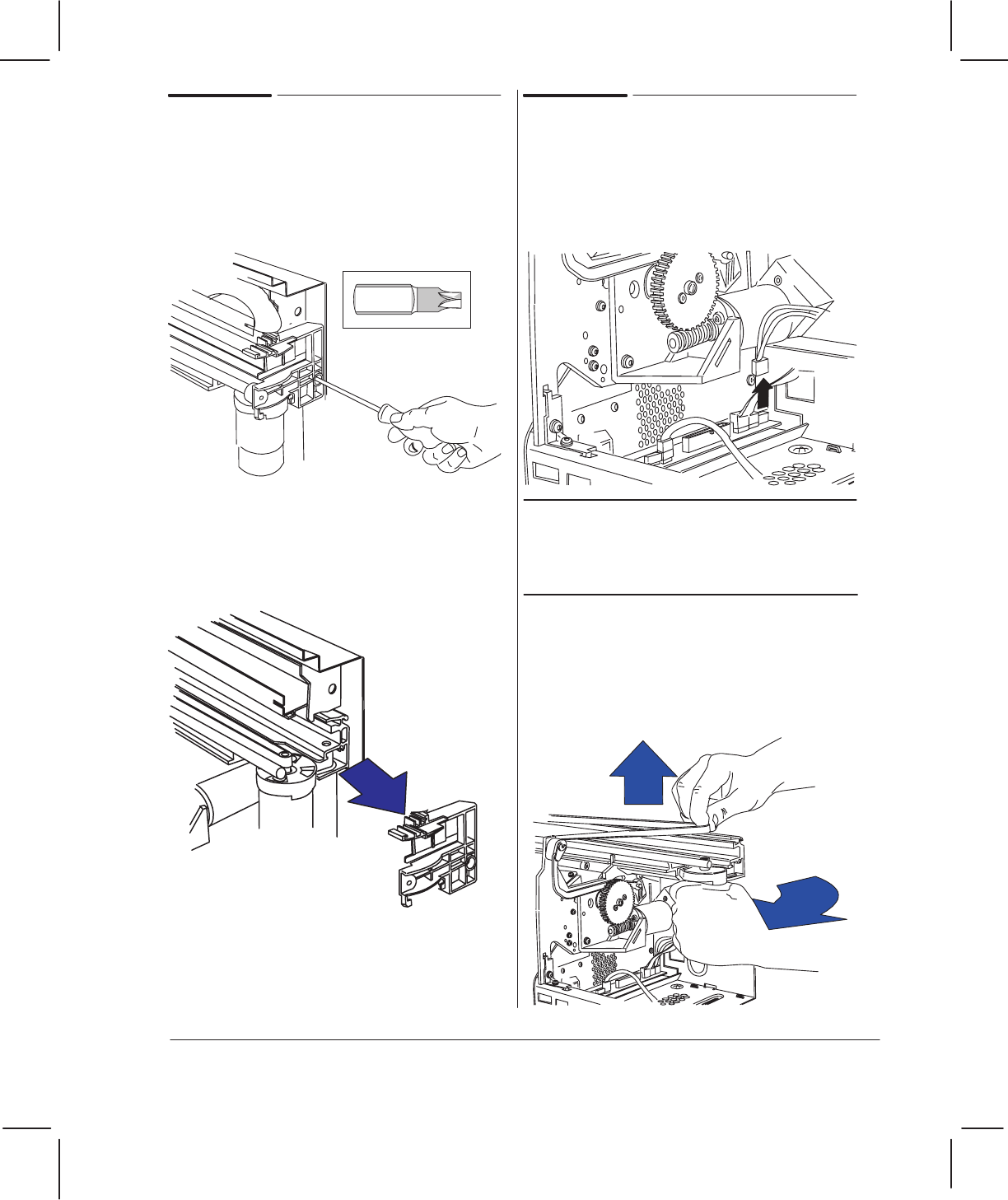

Removing the Right Bracket
1 Remove the encoder strip ' page 6Ć17.
2 Remove the screw that attaches the right
bracket to the plotter chassis.
Torx-20
Reassembling: Use the long screw.
Threaded length ≅ 3cm(∼1.2 inch).
3 Pull the right bracket to the right, and
remove it from the plotter,
Reassembling: Insert the rightĆbracket
tab into the slot on the right of the
trailingĆcable guide.
Removing the Carriage Motor
1 Remove the right bracket ' page 6Ć21.
2 Disconnect the carriageĆmotor cable from
the main PCA (connector
MOT Y), and
from the clip at the back of the plotter.
CAUTION
In the following step, take care not to break
the black plastic tab on top of the motor.
3 Press the carriage motor towards the left,
and remove the belt from the motor shaft.
If you need greater maneuverability of the
motor, press the black plastic tab on top
very slightly downwards.
A
B
