VIEWING A SPECIFIC CAMERA
When you select a camera, its video stream is sent to the currently selected video pane. For example, if your display is set to a 2 x 2 layout and
the upper left video pane is selected, you can choose any camera to display in that video pane. Follow the instructions below to move through the
camera sequence, call up cameras by number, and disconnect cameras.

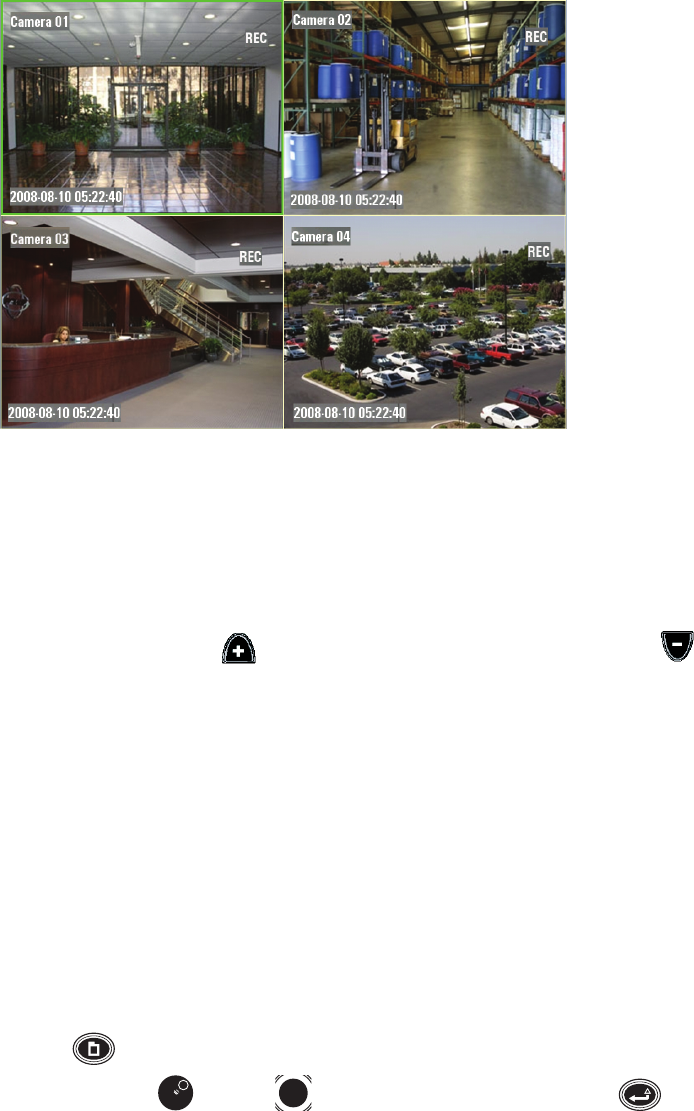

Figure 9. 2 x 2 Video Pane Configuration
MOVING THROUGH THE CAMERA SEQUENCE
Although a camera is displayed in a specific video pane, you can quickly cycle through the list of cameras in the sequence.
To sequence through the list of cameras:
1. Select the video pane displaying the desired camera.
2. Press Plus (+) on the keyboard’s numeric keypad [or ] to view the next camera in the sequence. Press Minus (-) [or ] to view the
previous camera in the video pane sequence.
CALLING UP CAMERAS BY NUMBER
To call up a camera by a logical number (keyboard only):
1. Select the video pane to display the desired camera.
2. Type a camera number (the camera must be enabled).
3. Press F9. The camera is displayed in the selected video pane.
CALLING UP CAMERAS THROUGH THE CAMERAS MENU
To select a camera through the Cameras menu:
1. Select a video pane to display the desired camera.
2. Press the “M” key [or Menu ] for the Main menu.
3. Click Cameras [or use the Jog (inner dial) or Joystick to select Cameras, and then press Enter/Shift ]. The Cameras
menu appears (refer to Figure 10).
