C2657M-A (7/08) 18
a. Click the desired cameras [or turn the Jog (inner dial) to select a camera, and then press Enter/Shift ].

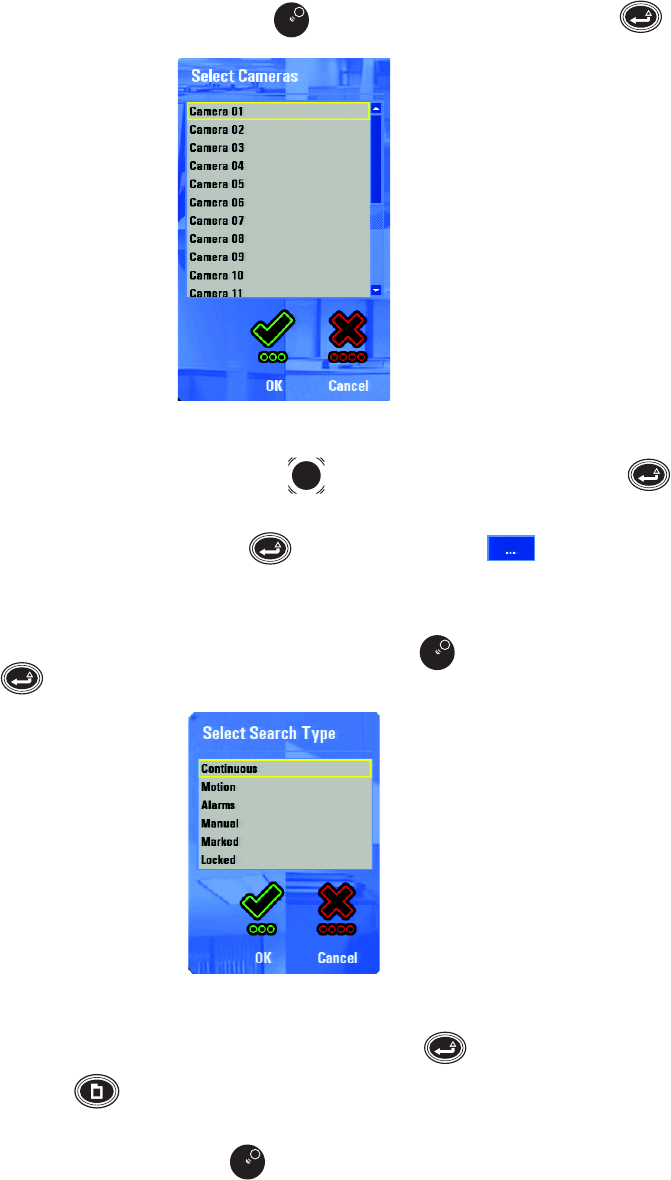

Figure 14. Select Cameras Dialog Box
b. Click OK when your list is complete [or use the Joystick to navigate to OK, and then press Enter/Shift ].
5. Select a video type or types from the Types field (All Types, Multiple Types, Continuous, Motion, Alarms, Manual, Marked, and Locked).
If you select Multiple Types, press Enter [or Enter/Shift ], or select the ellipsis button beside the Types box. The Select
Search Type dialog box appears (refer to Figure 15).
NOTE: By default, all types are selected, as indicated by the gray area of the dialog box.
a. Click the desired recording types for your search [or turn the Jog (inner dial) to select a recording type, and then press
Enter/Shift ]. Repeat this step to select more than one recording type.
Figure 15. Search Dialog Box
b. Click OK when your list is complete [or select OK, and then press Enter/Shift ].
6. Click Search [or press Menu ] to start the search. The Enhanced Search dialog box displays a list of results along with details about
each recording (camera name, start and end times, and recording type).
7. Select a recording result [or turn the Jog (inner dial) to select a recording], and then perform any of the following actions:
• Export: Select Export to export the video to an external storage device (refer to Exporting Video on page 19).
• Lock: Select Lock to lock the video so it cannot be overwritten.
• Play: Select Play to view the video (refer to Playing a Video Clip on page 19).
• Close: Select Close to close the Enhanced Search dialog box.
NOTE: You can sort your results by clicking any of the column headings in the Enhanced Search dialog box.
