108 Removal and replacement EN
6 Turn the Feed Assembly over and place it in one hand with the roller-side down. Pop one of the
tabs on the other side and the feed roller should fall into your hand (Figure 6-37).

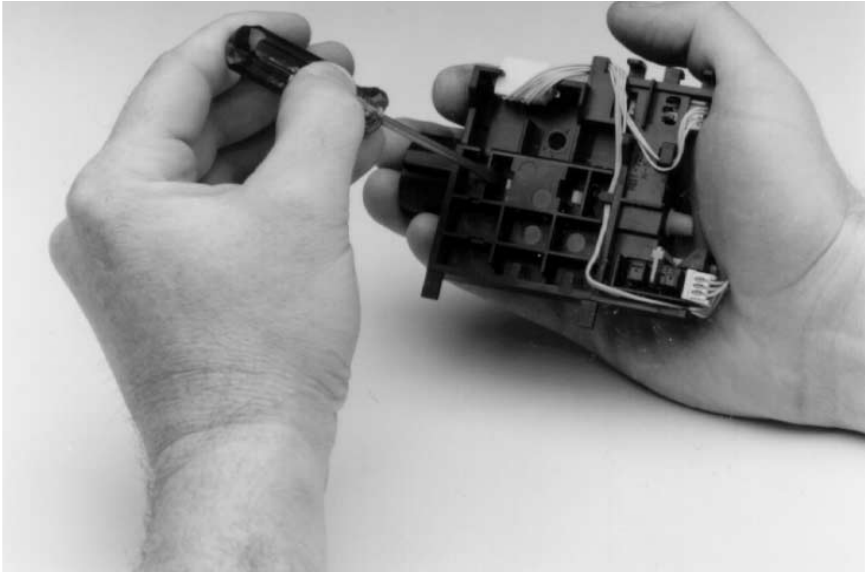

Figure 6-37 Feed Assembly removal (3 of 3)
To reinstall
Before securing the screw, ensure the tabs on the Feed Assembly are positioned in their slots on the
Paper Feed Frame (Figure 6-35, callout 2). Failure to do so will cause paper feed problems.
