114 Removal and replacement EN
Formatter PCA
CAUTION ESD SENSITIVE!
1 Remove the Printer Covers and complete the DC Controller removal direction up to step 8
(Figures 6-40 and 6-41).
2 Remove the two cable clips (Figure 6-43, callout 1).
3 Remove all (4) screws from the formatter cover (Figure 6-43, callout 2). Lift the I/O shield to
remove it.
4 If servicing an HP LaserJet 5L or 6L, remove the Control Panel display cable (Figure 6-43,
callout 3).
CAUTION On the HP LaserJet 6L Pro, the Control Panel display cable is connected directly to the Formatter PCA.
Do not attempt to disconnect this cable.
5 Slide the formatter away from the DC Controller PCA to remove it from the connector.

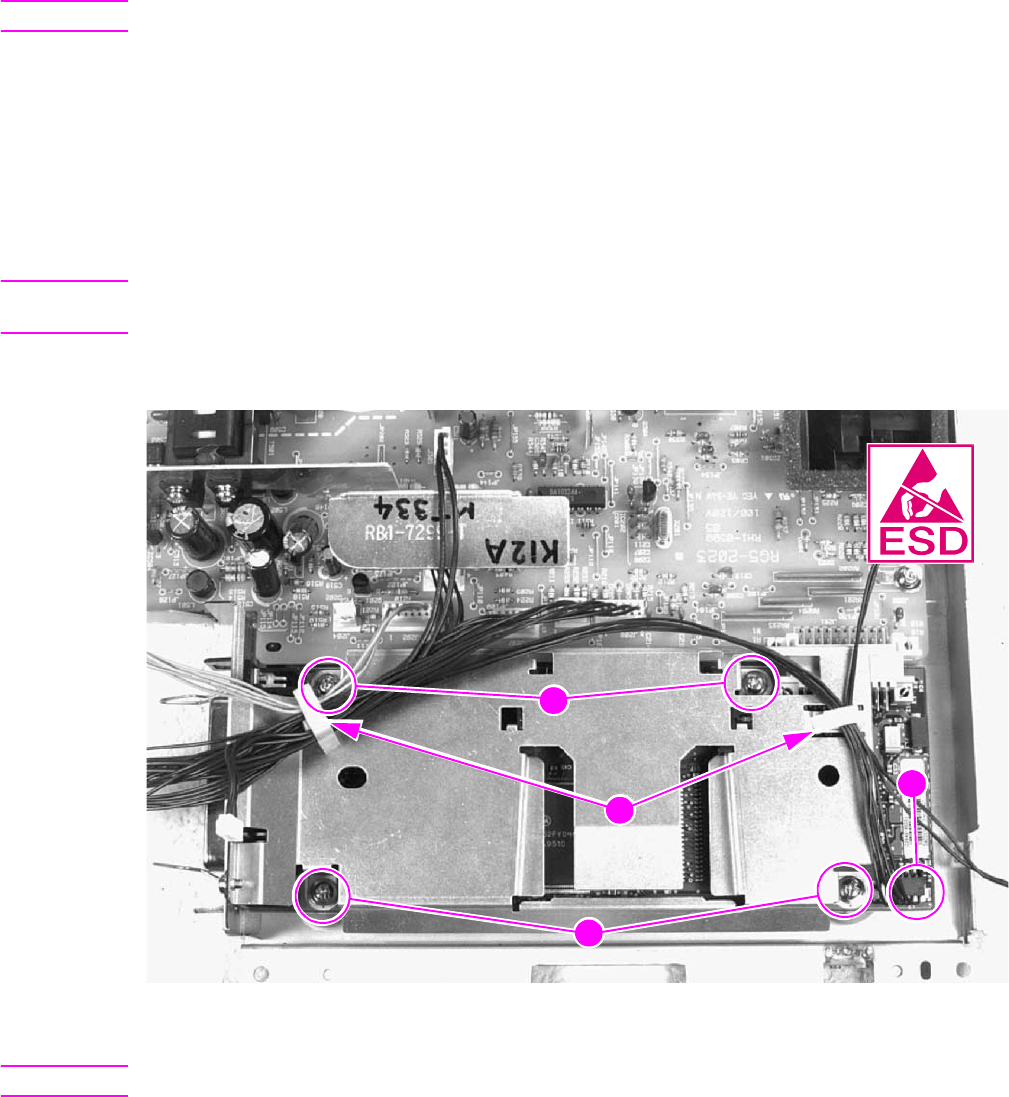

Figure 6-43 Formatter Board removal
Note The formatter I/O shield comes in two separate pieces. Be careful to order the correct pieces.
1
2
2
3
