EN DC Controller diagram 119
DC Controller diagram

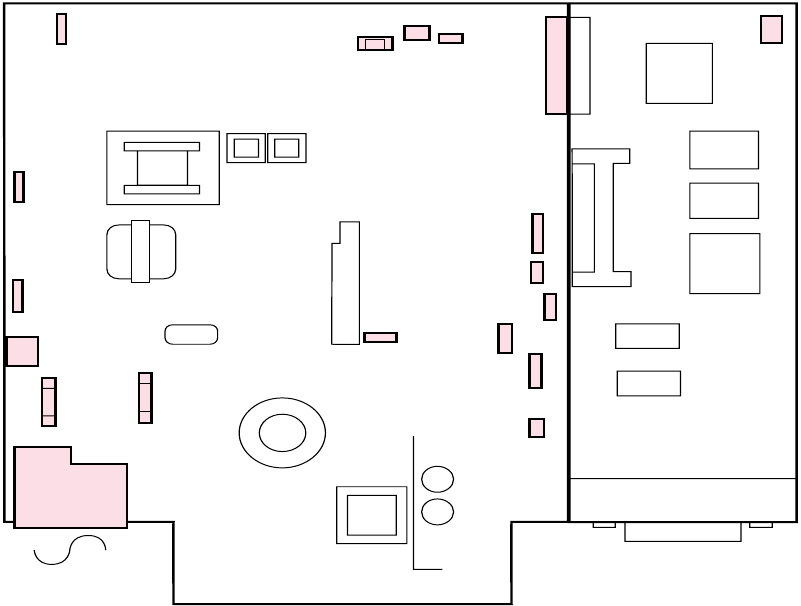

Figure 7-2 DC Controller PCA components
J302
J304
J401
J301
J207
FU101
J102
FU102
(110V only
J202
J204
J305
SW101)
INL101
J209
J201
J208
J206
SW201
PS201
J3
Formatter
DC Controller
(110V/220V)
Note: Some of the connectors shown
in this diagram are not present on the
HP LaserJet 6L Pro
J3 Control Panel Connector (Formatter PCA)
J102 Fusing Assembly J202 Paper Registration and Paper-Out
Photosensors (PS203 and PS202)
J201 Formatter PCA Connection J206 Fusing Assembly (thermistor feedback)
J204 Paper Pickup Solenoid (SL1) J207 Scanner Motor
J301 Developer Bias Contact J208 Laser Driver/Beam Detect Circuitry
J302 Transfer Roller Contact 209 Door Open/No Toner Cartridge
Photosensor (PS204) (HP LaserJet 5Lonly)
J304 Primary Roller Contact J401 Motor
SW101 +12A Vdc Shutoff Switch FU101
SW201 Engine Test Print Switch FU102 110 volt only
PS201 Fusing Assembly Exit Photosensor INL101 Input Power Receptacle
