DC Power Supply Removal
Removal/Replacement Procedures 7-31
DC Power Supply Removal
To remove the DC power supply:
1 Open the front, top, and back covers.
2 Disconnect CN6, CN7, CN8, and CN330.
3 Remove the output tray.
4 Remove the right side cover. (See page 7-9.)
5 Remove the bracket for the output tray guide (two screws).
6 Remove the DC power supply (two screws).
Replacement Note:
When replacing the output tray bracket, make sure it is seated inside the DC power supply.

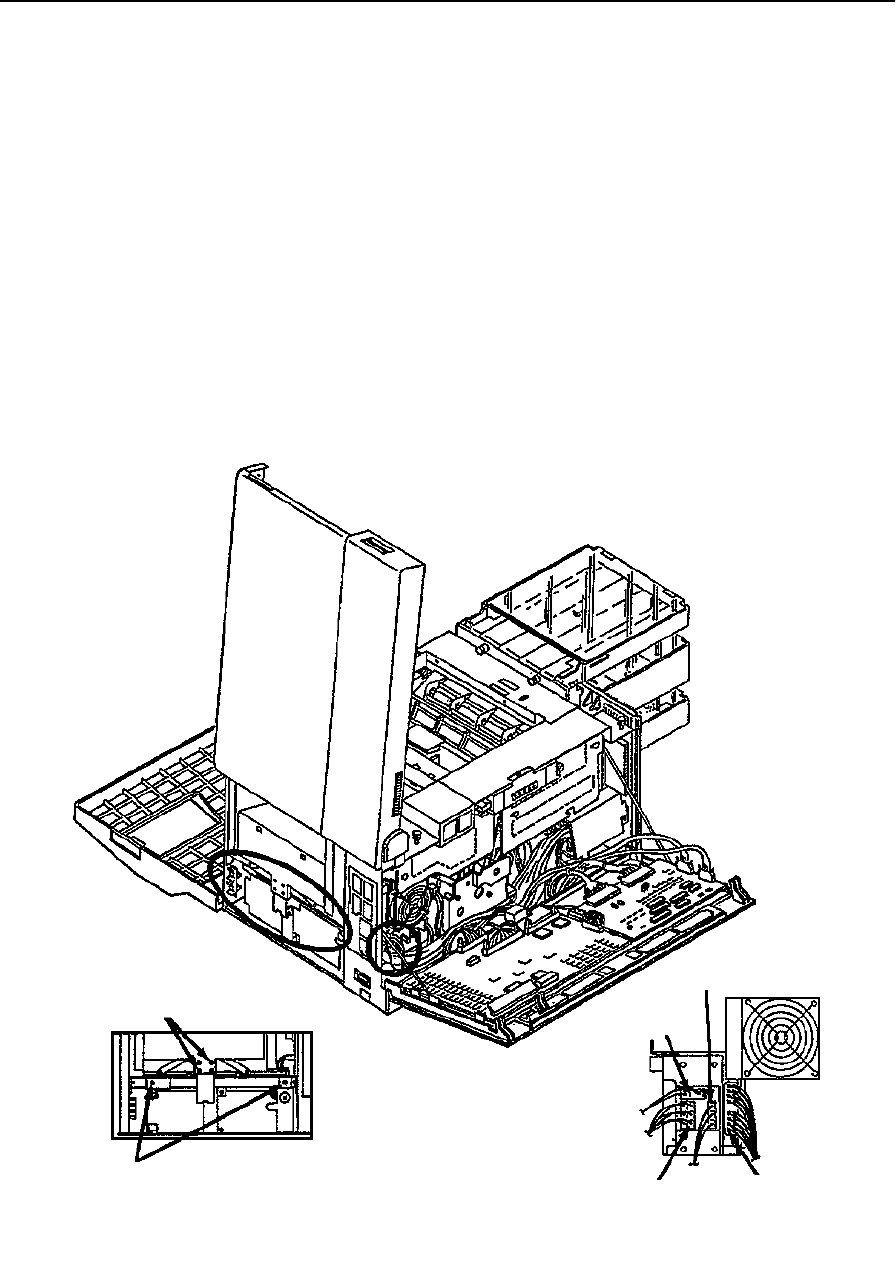

Bracket Screws
DC Power Supply Screws
Right Side Detail
CN330
CN6
CN7
CN8
Back Detail
