Duplex Paper Path Sensor Removal
7-102 Removal/Replacement Procedures

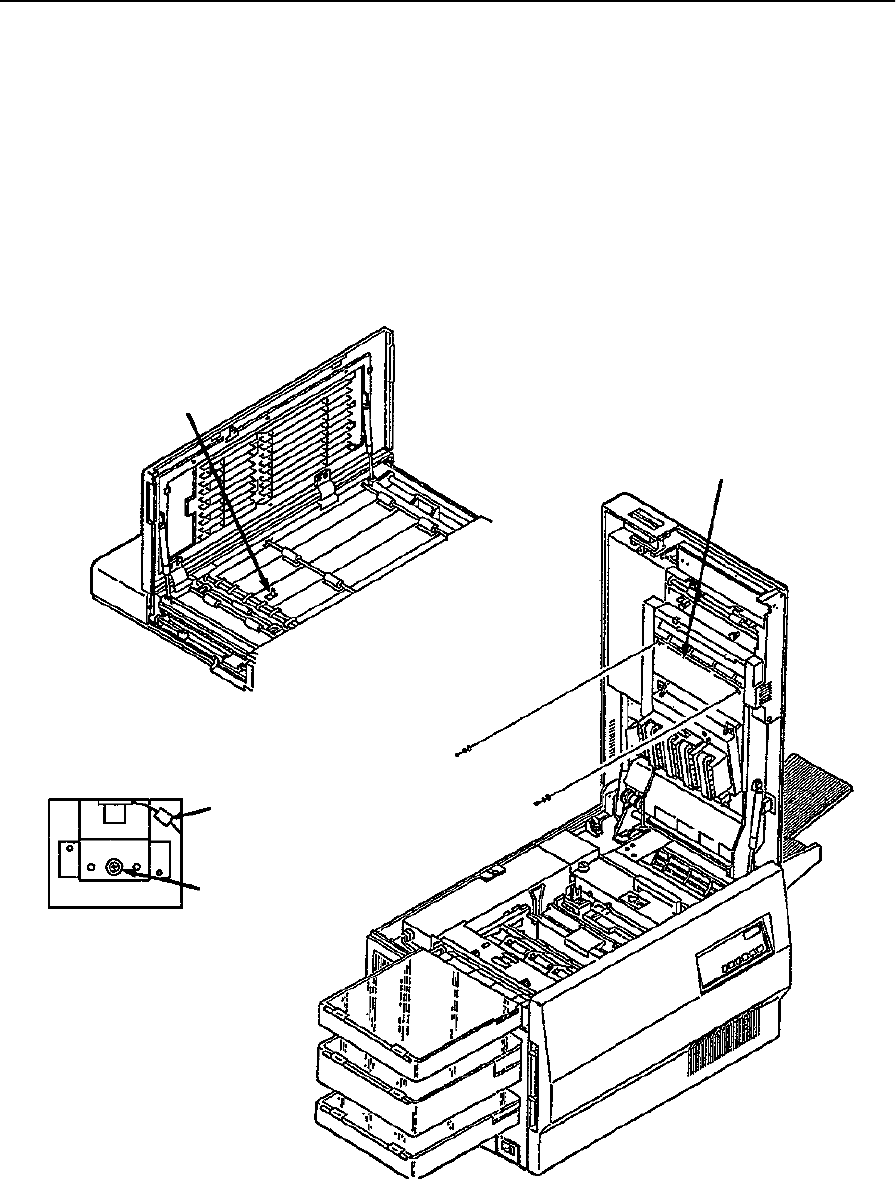

Duplex Paper Path Sensor Removal
To remove the duplex paper path sensor:
1 Open the top cover.
2 Remove the two screws holding the duplex control board cover in place.
3 Move the cover to the left out of the way.
4 Disconnect CN319.
5 Remove the duplex paper path sensor (single screw).
Paper Path Sensor
CN319
Mounting Screw
Paper Path Sensor
Underside Detail
Duplex Control
Board Cover
