BIDIRECTION DEF — Prints the bidirectional printing adjustment pattern for all print modes except
FINE and F-FINE.
●
BIDIRECTION FINE — Prints the fine bidirectional printing adjustment pattern for FINE and F-
FINE.print modes.
●
NOZZLE POS ADJ. — Prints the printhead nozzle adjustment pattern.
●
LS ADJ PRINT — Prints the line sensor adjustment pattern. This test pattern is used by HP Support.
●
TUR ADJ PRINT — Prints a pattern that is used to align the take-up reel when it is installed.

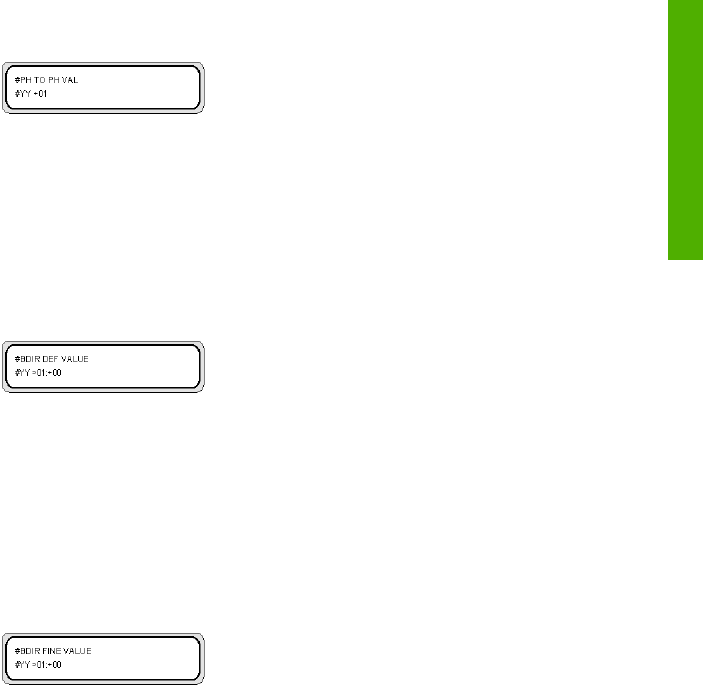

Printhead position adjustment (#PH TO PH VAL)
Use this option to adjust the printhead to printhead position.
Enter an adjustment value according to the PH TO PH adjustment pattern.
YY: Ink color
Display order: K -> Lm -> Lc -> Y -> M -> C
Parameters: sign (+/-), value (-32 to +31)
Bidirectional print position adjustment (BIDIR DEF)
Use this option to adjust the printhead bidirectional printing position for all print modes except FINE and
F-FINE.
Enter an adjustment value according to the BIDIRECTION DEF adjustment pattern.
YY: Ink color
XXXXXX: Media type
Display order: K -> Lm -> Lc -> Y -> M -> C
Parameters: sign (+/-), value (-32 to +31)
Bidirectional print position fine adjustment (BIDIR FINE)
Use this option to adjust the printhead bidirectional printing position for FINE and F-FINE print modes.
Enter an adjustment value according to the BIDIRECTION FINE adjustment pattern.
