6 Peripheral Administration Remote Terminal Administration
UCS 1000 R4.2 Administration 585-313-507 Issue 3 April 2000 294
The system displays the Quick Terminal Setup window (Figure 134).

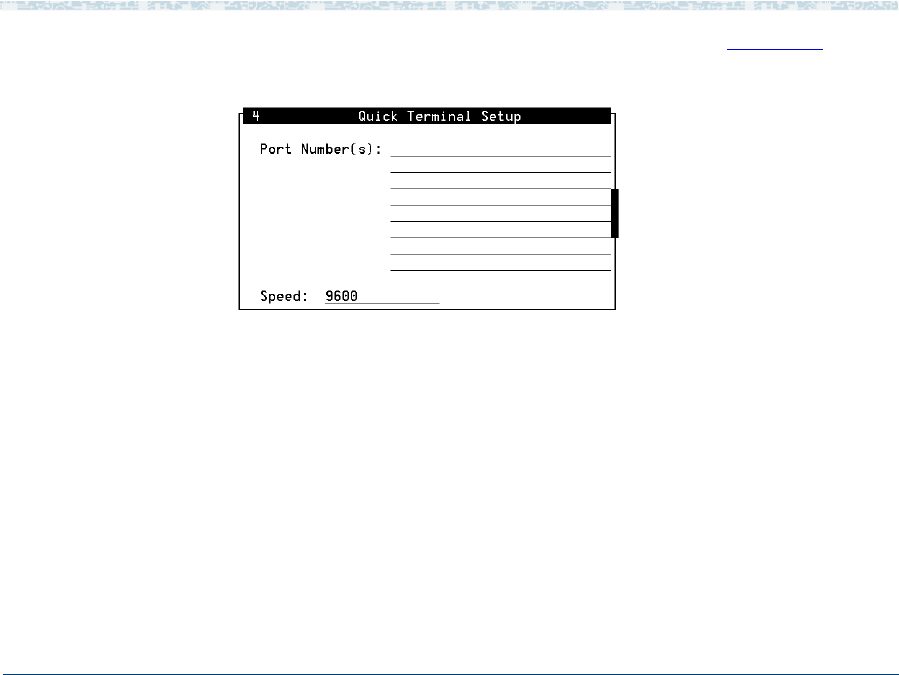

Figure 134. Quick Terminal Setup Window
2
If you know the name of the port monitor, enter the name in the Port
Number(s):
field, or press F2 (Choices) to select from a menu.
3 Enter the speed in the Speed: field, or press F2 (Choices) to select from a
menu. The default is 19200.
4 Press F3 (Save).
The system adds the terminal to the selected port monitor names and
displays a confirmation window.
5 Press F3 (Cont).
The system displays the Quick Terminal Setup menu.
