EN Top assemblies 99
5 Remove the self-tapping screw from the back sheet metal plate and lift it off (Figure 6-28, callout
1).
6 Remove the (4) hex head screws from the Paper Feed Frame (Figure 6-28, callout 2).

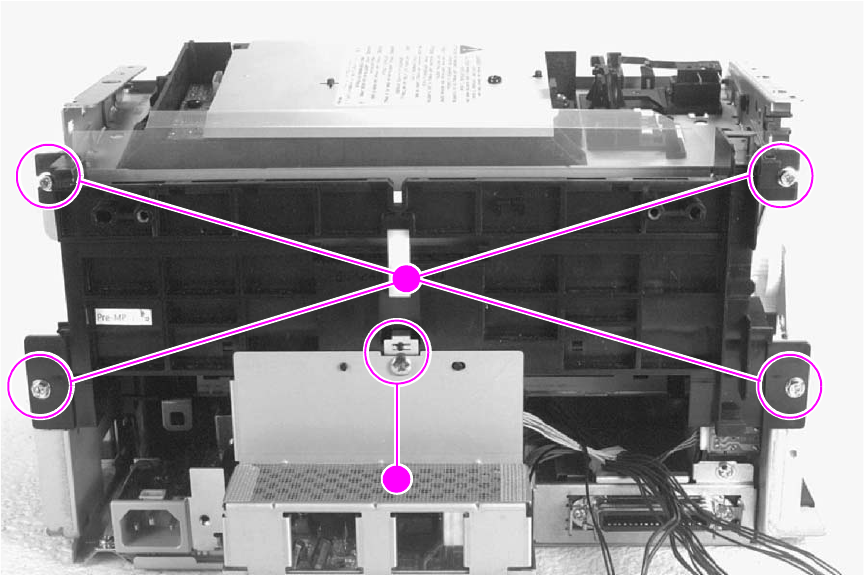

Figure 6-28 Paper Feed Frame removal (3 of 4)
1
2
