92 Removal and replacement EN
Solenoid
1 Remove the Printer Covers.
2 On the left side of the printer, remove the paper pickup gear (Figure 6-21, callout 1) by pressing
the tabs in the center of the gear outward and pulling the gear off (Figure 6-21).

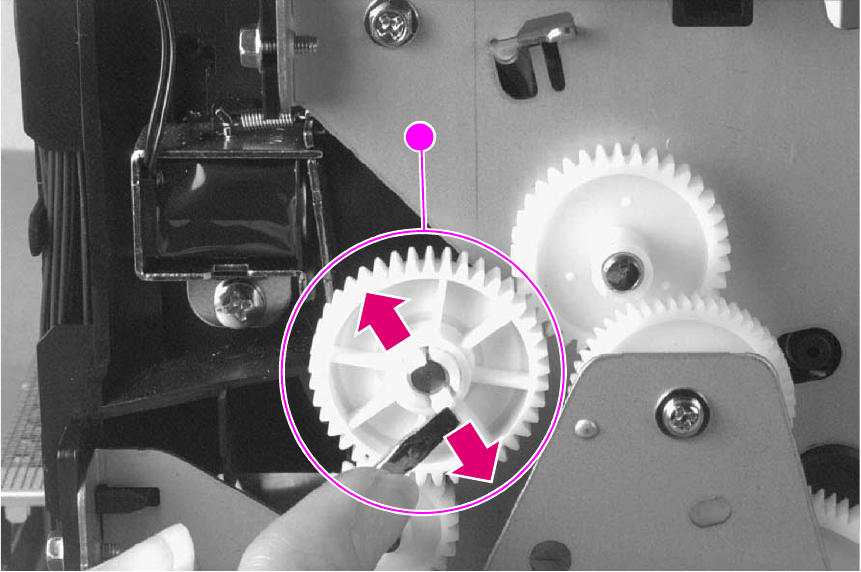

Figure 6-21 Solenoid removal (1 of 2)
1
