110 Removal and replacement EN
Motor
1 Remove the Printer Covers.
2 Remove the motor connector (Figure 6-39, callout 1).
3 Remove the memory door guide (HP LaserJet 5L and 6L) to expose the two motor screws.
4 Remove the motor screws (Figure 6-39, callout 2).
5 Lift the Motor out.

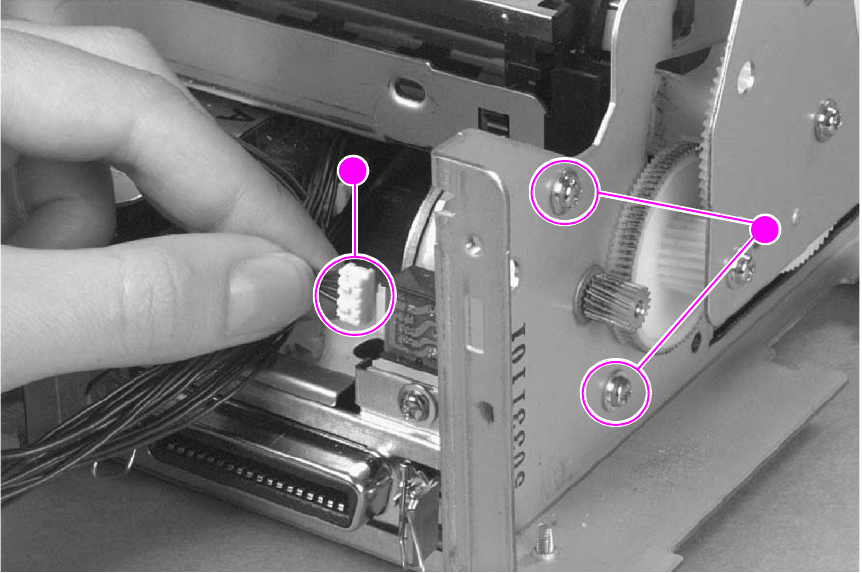

Figure 6-39 Motor removal
2
1
