EN Bottom assemblies 113

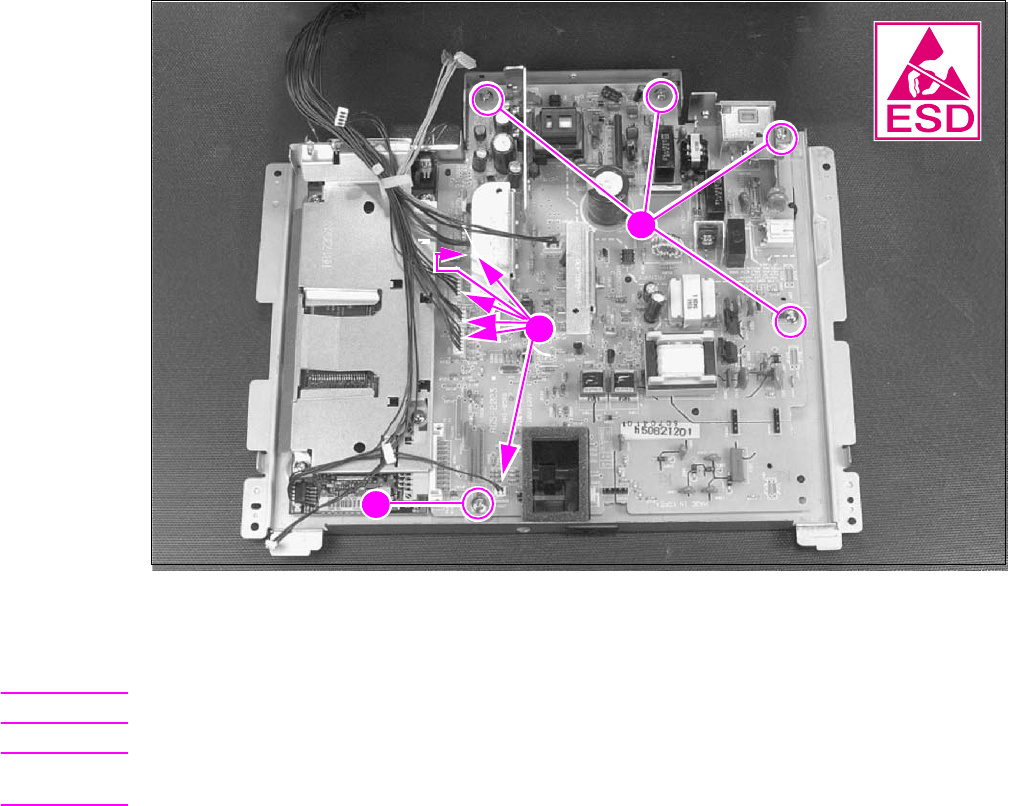

Figure 6-42 DC Controller removal (3 of 3)
11 Remove the DC Controller by lifting gently on the side opposite the formatter, then sliding it out.
CAUTION Be careful not to rotate the DC Controller as you remove it.
Note When ordering, the DC Controller does not come with any connectors. Use the current connectors or
refer to the connector chart in Chapter 8 for ordering information.
1
2
2
