Replacing Developer
Ordering and Replacing Consumables 4-15
Consumables
9. Gently tap the developer bottle to dislodge any remaining developer, as shown in
Figure 4-18.
10. Turn the developer bottle counterclockwise 180
°
and remove, as shown in Figure 4-19.

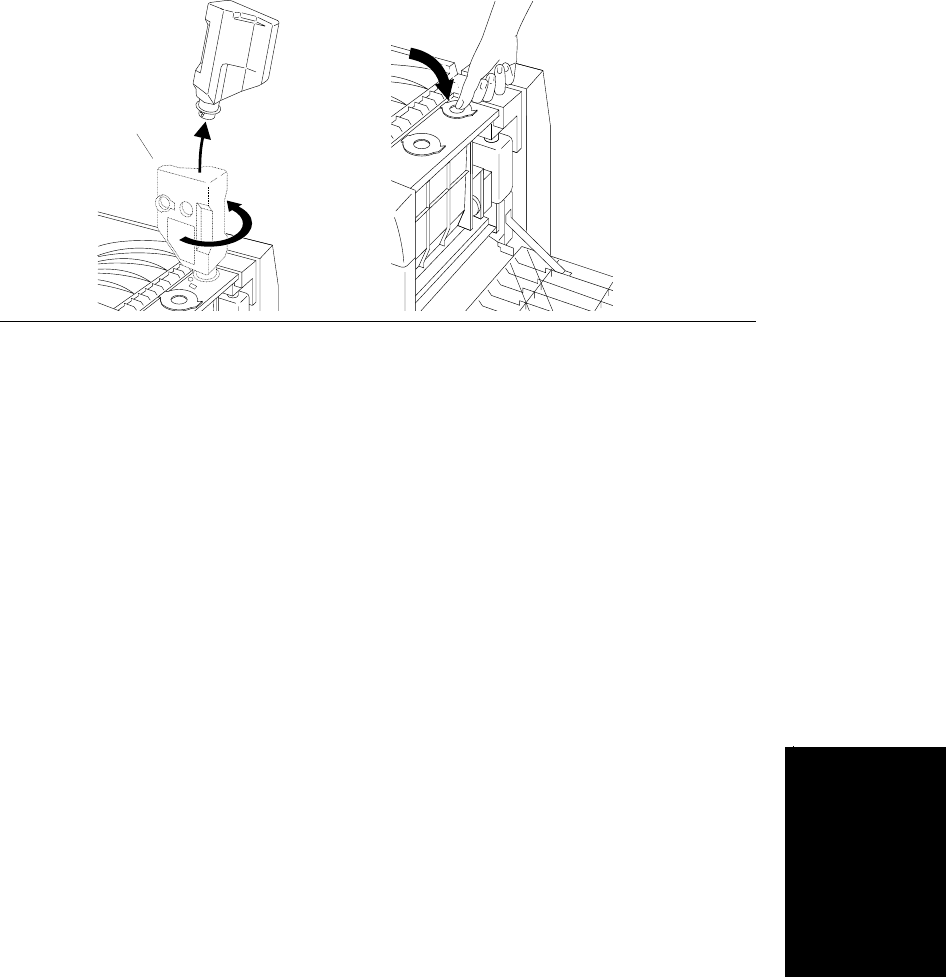

Figure 4-19 Removing the Developer Bottle and closing the Fill Flap
11. Close the developer fill flap, as shown in Figure 4-19.
12. Press Done. The Control Panel displays:
Developer injection complete
Remove and Cap Old Bottle
Install Empty New Bottle
Close Cover and Press Done
Empty developer bottle
