Periodic Cleaning (When Replacing Drum)
Maintenance 5-11
Maintenance
Reinstalling the Transfer Assembly
1. Using the alignment pin located on the end of the cleaned transfer assembly, insert the
alignment pin of the transfer assembly into the left rail of the transfer assembly guide
and push in to the end of the guide. See Figure 5-11.

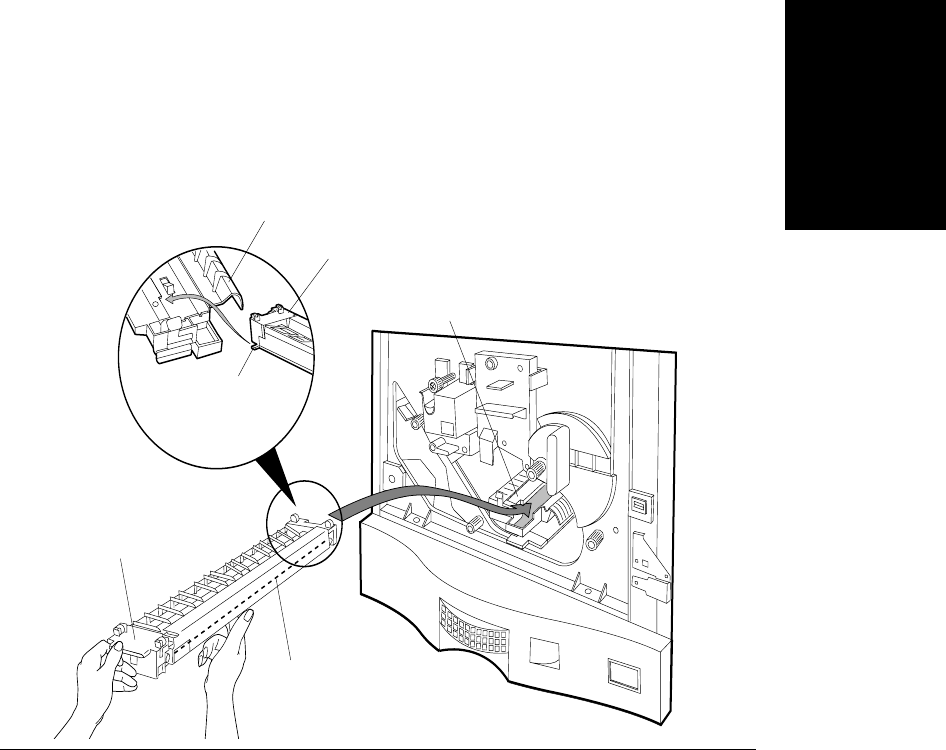

Figure 5-11 Inserting the Transfer Assembly into the guide
Transfer assembly
Wire
Transfer assembly guide
LTR
Transfer assembly
Transfer assembly guide
Pin
