WARNING
Take care neither to cut
yourself on the encoder
strip, nor to damage the
strip.
7Ć13 Calibrations and AdjustmentsC4699Ć90000
10 Move the carriage back into the service station.
11 Close the top cover.
To adjust the carriageĆtoĆmedia distance
You will need to adjust the carriageĆtoĆmedia distance if:
D The ledge on the carriage did not pass over the GO side of the gauge. This means that
the carriage is positioned too close to the drive roller.
D The ledge on the carriage did pass over the NO GO side of the gauge. This means that
the carriage is positioned too far from the drive roller.
Adjust the carriageĆtoĆmedia distance as follows:

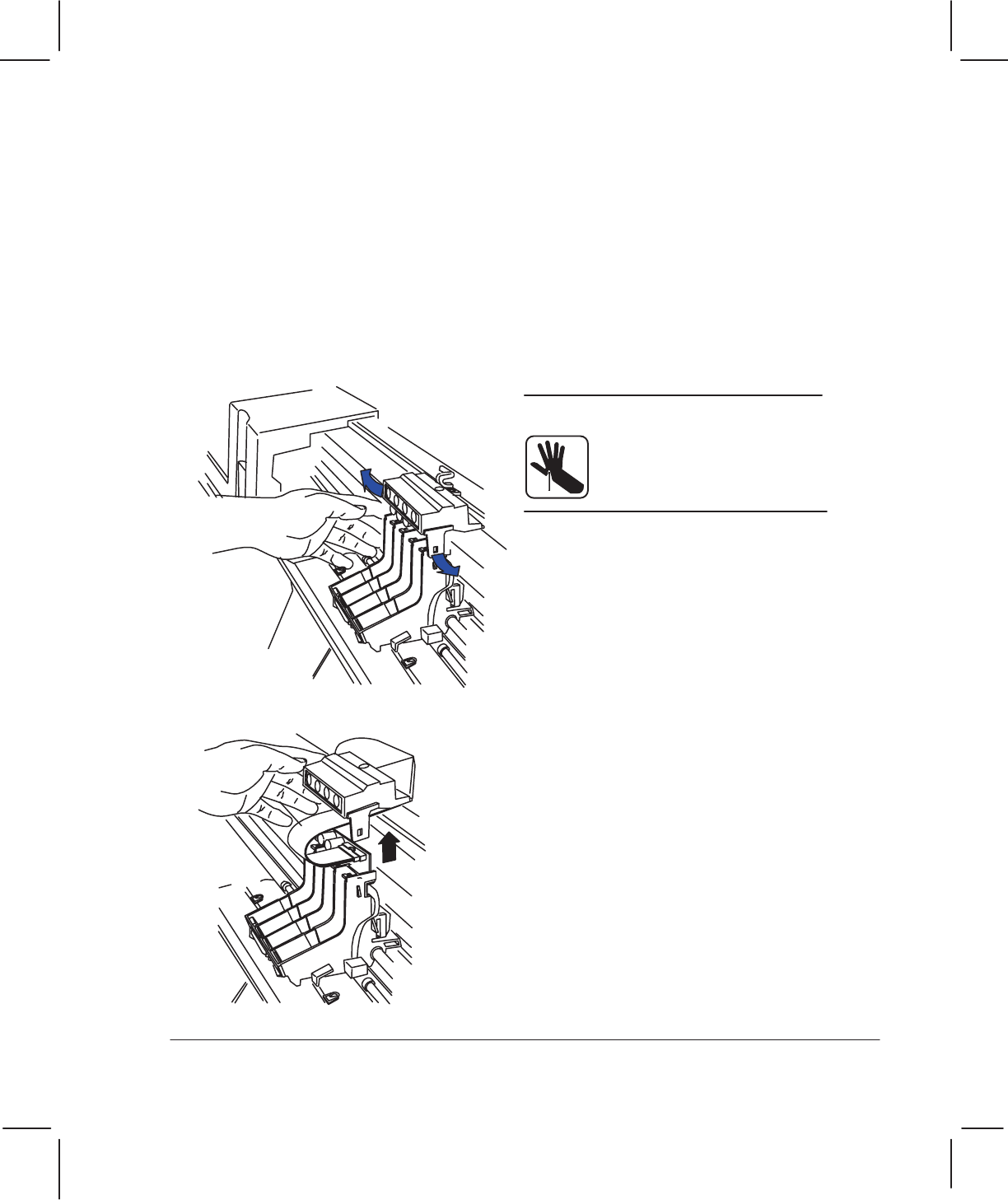

1 Release the two indicated clips on the top of the cartridge carriage by pulling them
slightly outwards.
2 Pull the top of the carriage up.
