8Ć3 TroubleshootingC4699Ć90000
What You Should See and Hear
The sequence given below is what should happen when you turn on the plotter in normal
operating mode.
To observe movement of internal mechanisms, you can keep the cover
switch pressed, while the cover is open. However, in doing so, do not
block the path of the cartridge carriage with anything you stick into
the coverĆswitch area.
CAUTION
The possible states of any LED are:
Flashing
Can be On or Off
?
Off On

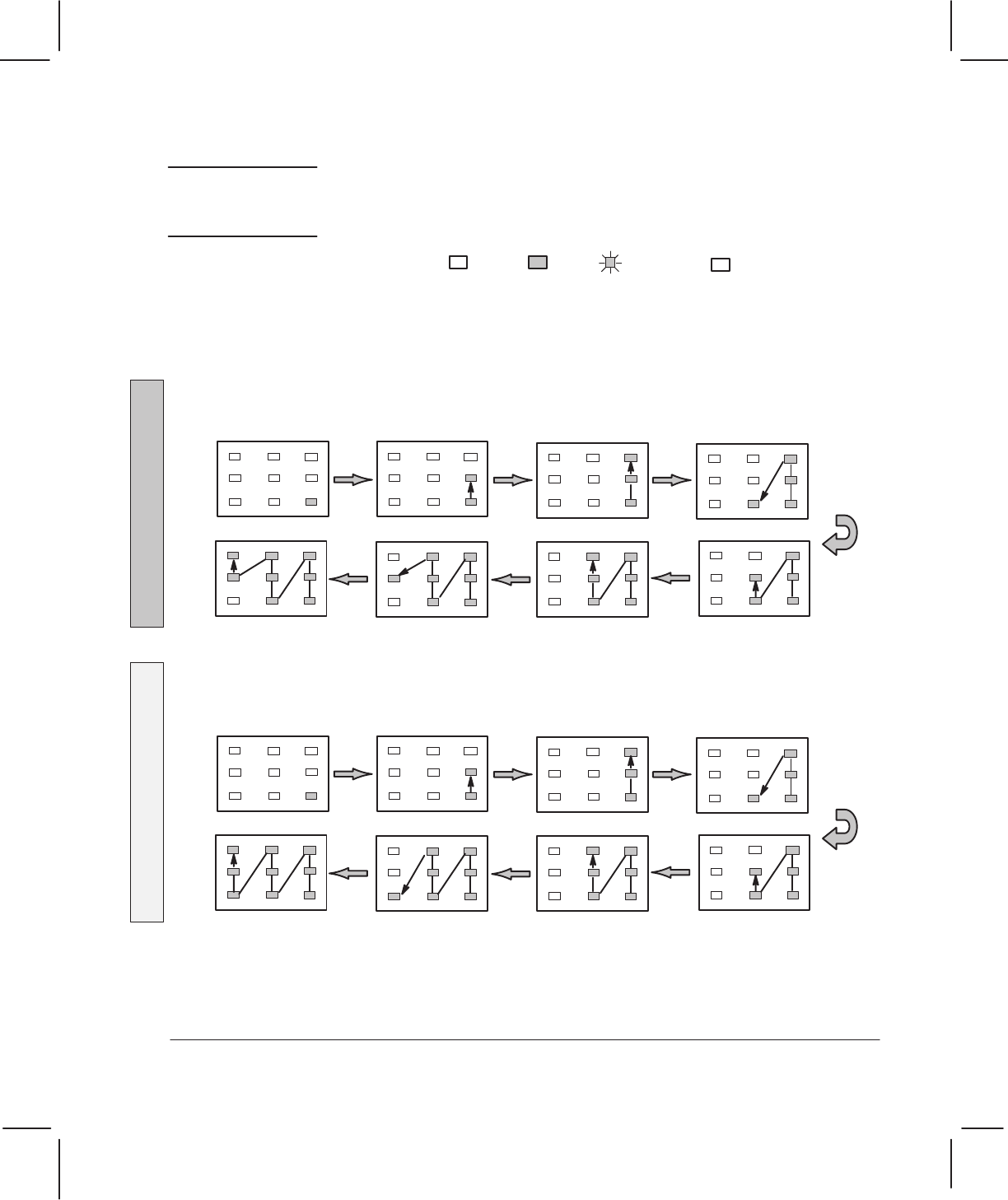

1 All frontĆpanel LEDs flash together twice; the second flash is very short.
2 If a firmware ROM SIMM is installed in the plotter, the following will occur:
The LEDs light up one by one as follows, until eight LEDs are on. This happens three
times.
The LEDs light up one by one as follows, until all nine LEDs are on. This happens
several times throughout the initialization procedure.
