330
350C
6Ć24 Removal and Replacement
C4699Ć90000

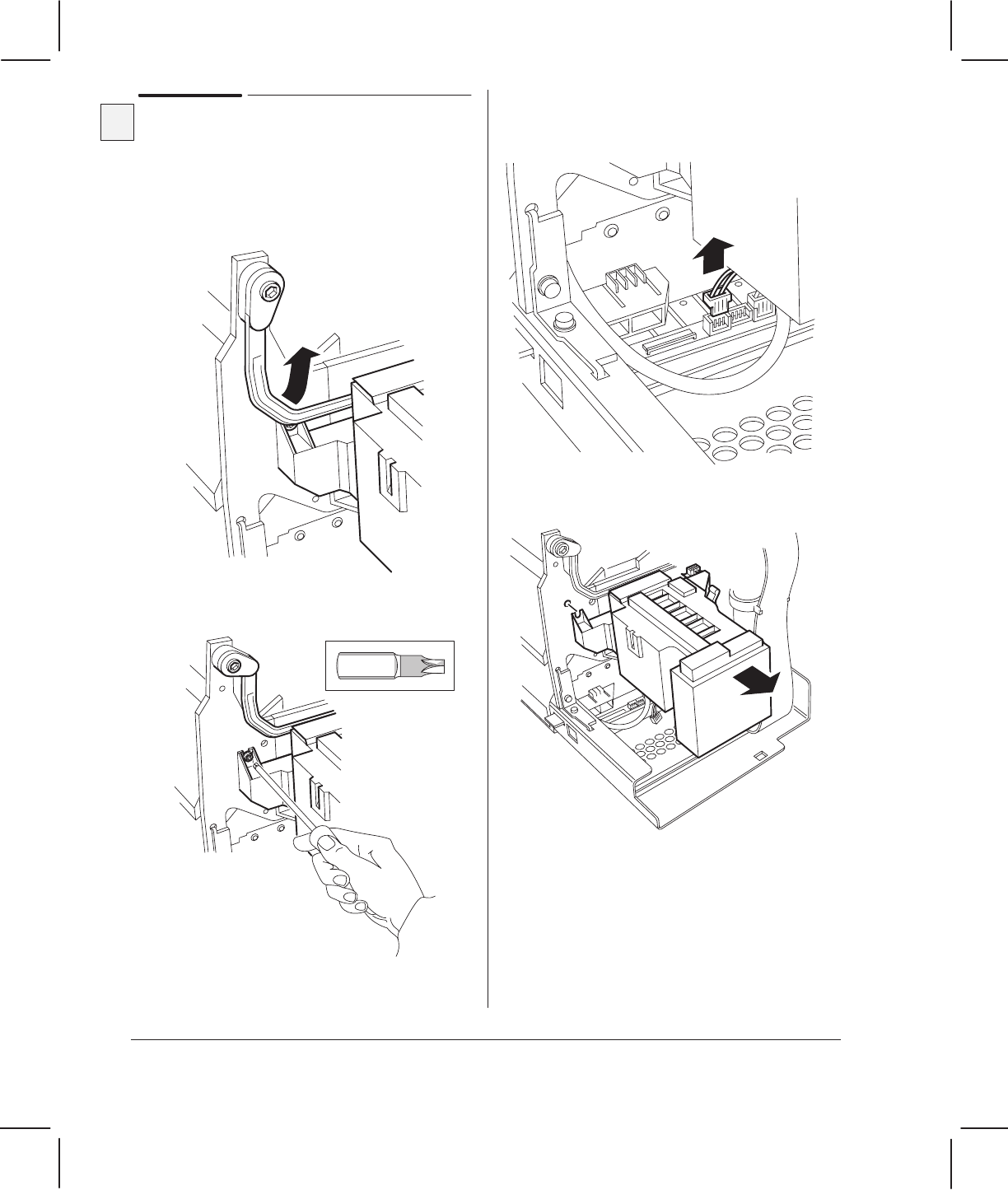

Removing the Spittoon
1 Remove the right endĆcover ' page 6Ć10.
2 Move the pinchĆarm lever linkage upwards
so you can access the screw that attaches
the spittoon to the right sideĆplate.
3 Remove the screw that attaches the
spittoon to the right sideĆplate.
Torx-20
4 Disconnect the pinchĆarm sensor cable
from the main PCA (connector PINCH).
5 Slide the spittoon to the right, and
remove it from the plotter.
