6Ć19 Removal and ReplacementC4699Ć90000

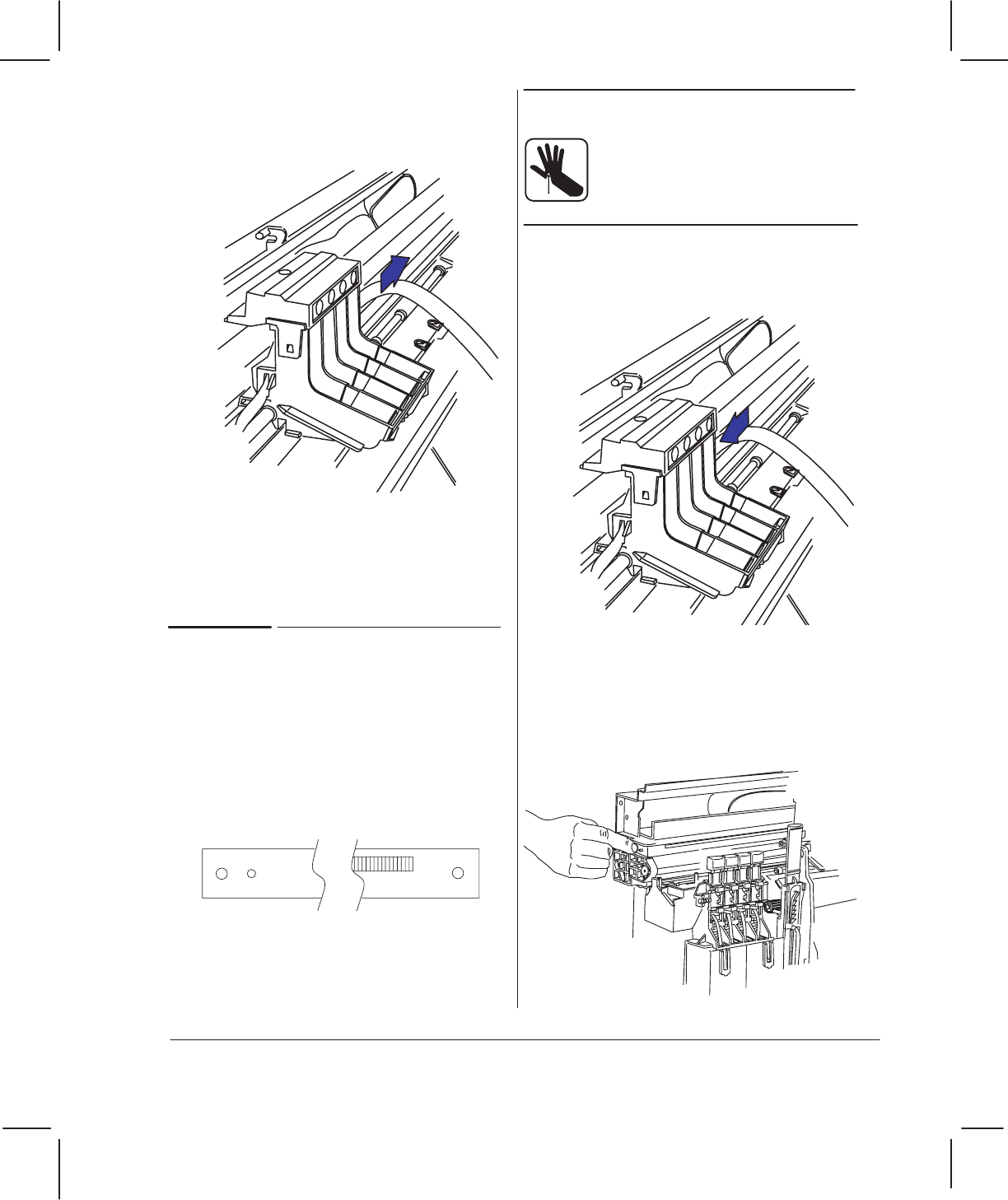

11 Carefully pull the encoder strip to the
right, through and out of the carriage
assembly.
12 Lay the encoder strip on a flat surface.
Reinstalling the Encoder Strip
1 Move the cartridge carriage to the left,
over the service station.
2 Ensure that the encoder strip is oriented
with the transparent area up, and with
two holes on the left side and one hole on
the right side.
WARNING
In the following steps, take
care neither to cut yourself
on the encoder strip, nor to
damage the strip.
3 Feed the encoder strip through the
cartridge carriage from right to left.
4 Temporarily, rest the loose strip safely on
the drive roller.
5 Slip the left end of the strip over the
plastic pin on the left bracket, and press it
right to the base of the pin.
