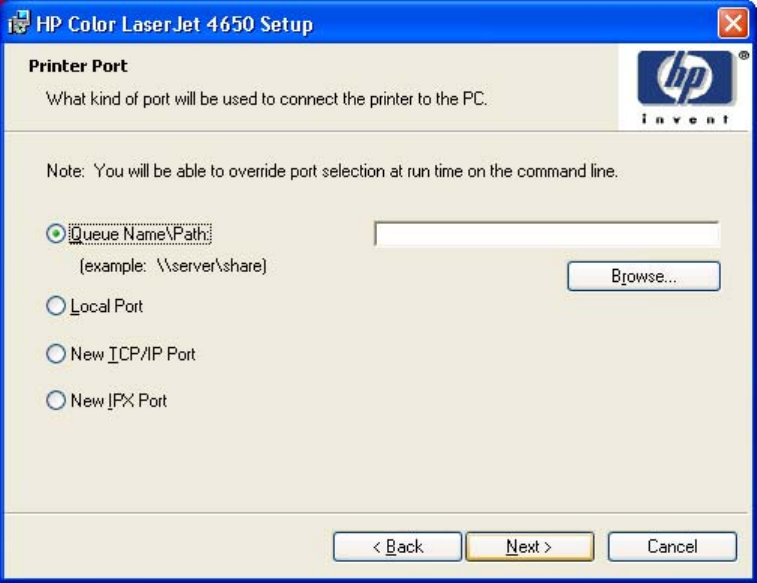

Figure 5-27.
Printer Port dialog box
Clicking Queue Name\Path makes a text field available for a Queue entry. Click the Browse
button to navigate to a printer to record the path.
Clicking Local Port and then clicking Next takes you to the Connector Type dialog box, which
is similar to the Connection Type dialog box that appears during a standard installation.
However, the Connector Type dialog box includes all types of local ports regardless of local
support. It also includes all custom network ports that are available on the local system. To use
any custom network port for the customized installer, the port must be created identically on the
system where the port will be used.
Clicking New TCP/IP Port or New IPX Port, and then clicking Next, takes you to the Specify
Printer dialog box.
Clicking Back returns you to the Language dialog box.
Clicking Cancel takes you to the Exit Setup dialog box.
240 Detailed Windows installation EN
