Chapter 6 Troubleshooting and Maintenance
6-7

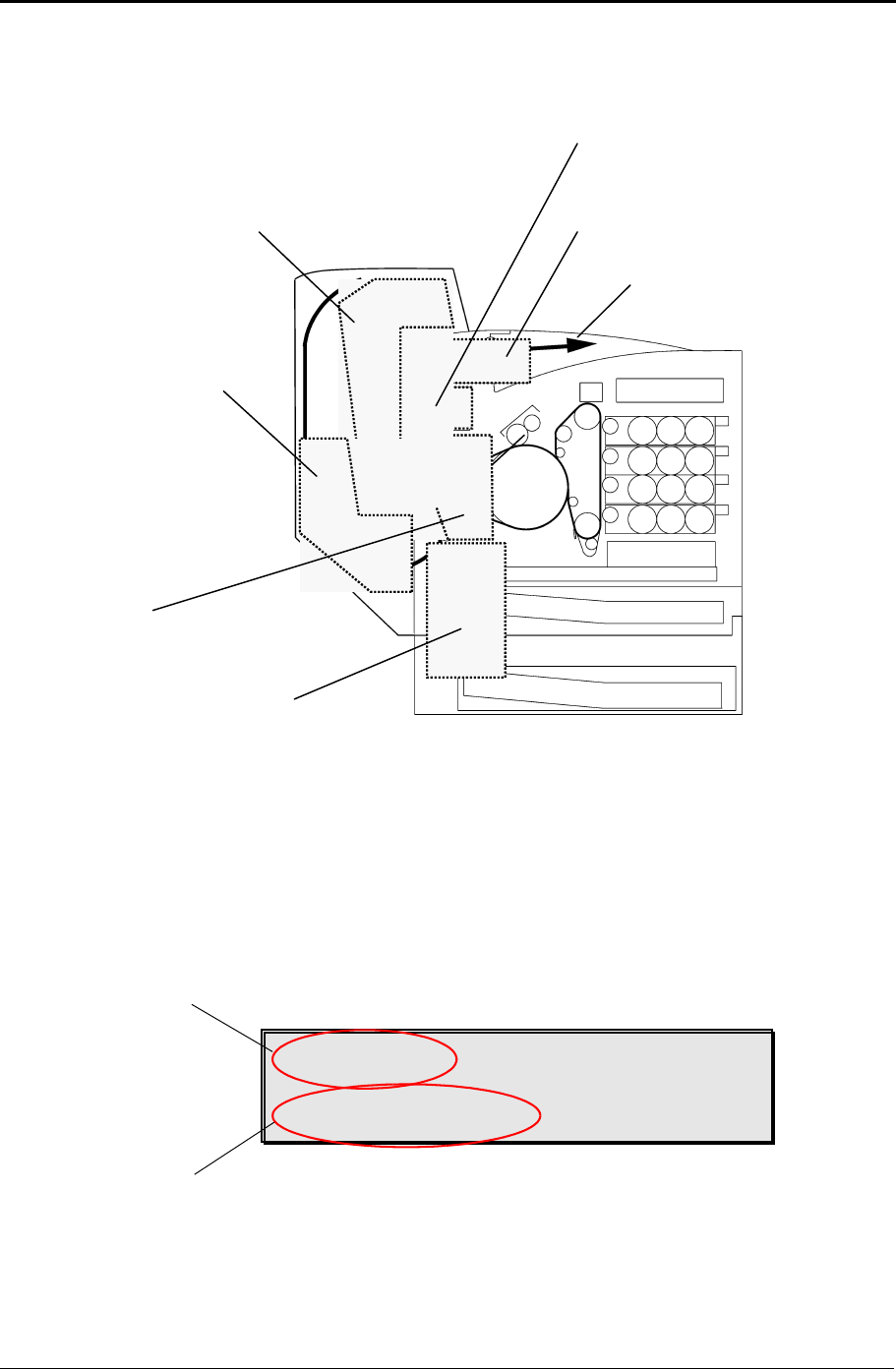

6.2.1 Media Jam Locations
6.2.2 Determining Media Jam Locations by LCD
Messages
When media jam has occurred, the LCD on the control panel shows a message.
Determine the locations of the jam according to the message and diagram
above.
c Ty pe of E rr or
d Location of the jam, and parts (tray and/or cover) to be removed and/or opened
for resolving the jam
Duplex Unit (upper)
JAM-E
Duplex Unit (lower)
JAM-D
Fuser unit
JAM-C
Media Exit
JAM-C
Media path
Transfer belt
JAM-B
Feeder JAM-A
Paper Jam
JAM-A Tray, Rear
c
d
