Chapter 7 Replacing Consumables and Replacable Parts
7-11
7.2.4 Replacing the Fuser Unit
Replace the fuser unit according to the procedure below.
CAUTION! The fuser unit and the area around it are hot during and
immediately after using the printer. If you touch them, you may be burned. Turn off
the printer, and then wait for more than 30 minutes. After the printer is fully cooled,
replace the fuser unit.
1. Turn off the printer.
X Wait for more than
30 minutes.

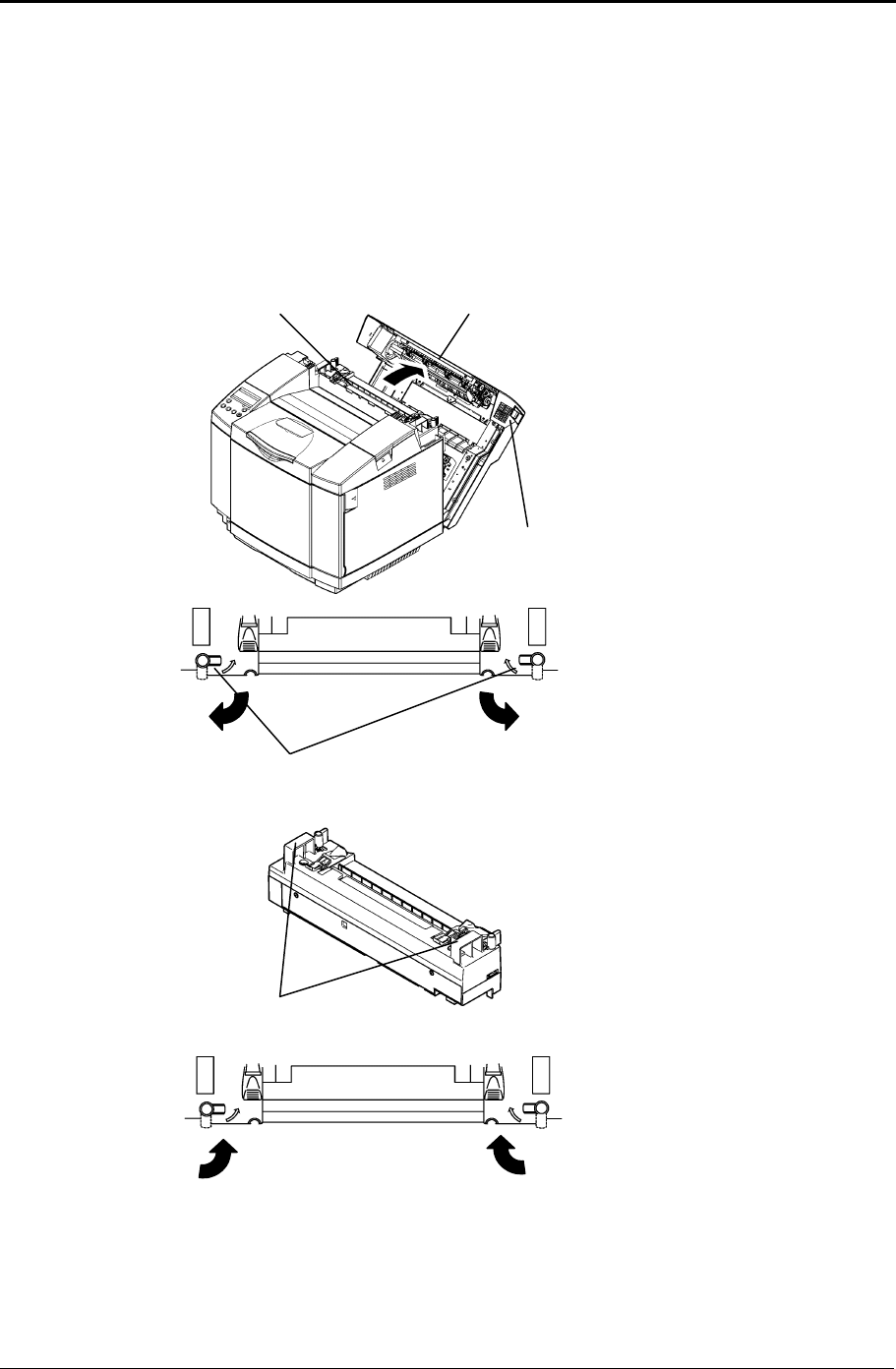

2. Pull the lever on the Back
cover to unlock the back
cover, and open the back
cover until it stops.
X Keep the top cover fully
open during the replace-
ment work.
3. Release the two green lock
levers.
4. Remove the old fuser unit by
holding onto the handles.
5. Insert a new fuser unit.
6. Turn the two green lock levers
to secure the fuser unit.
Back cover
Lever
Fuser unit
Lock lever
(green)
Handle
