Chapter 6 Troubleshooting and Maintenance
6-17

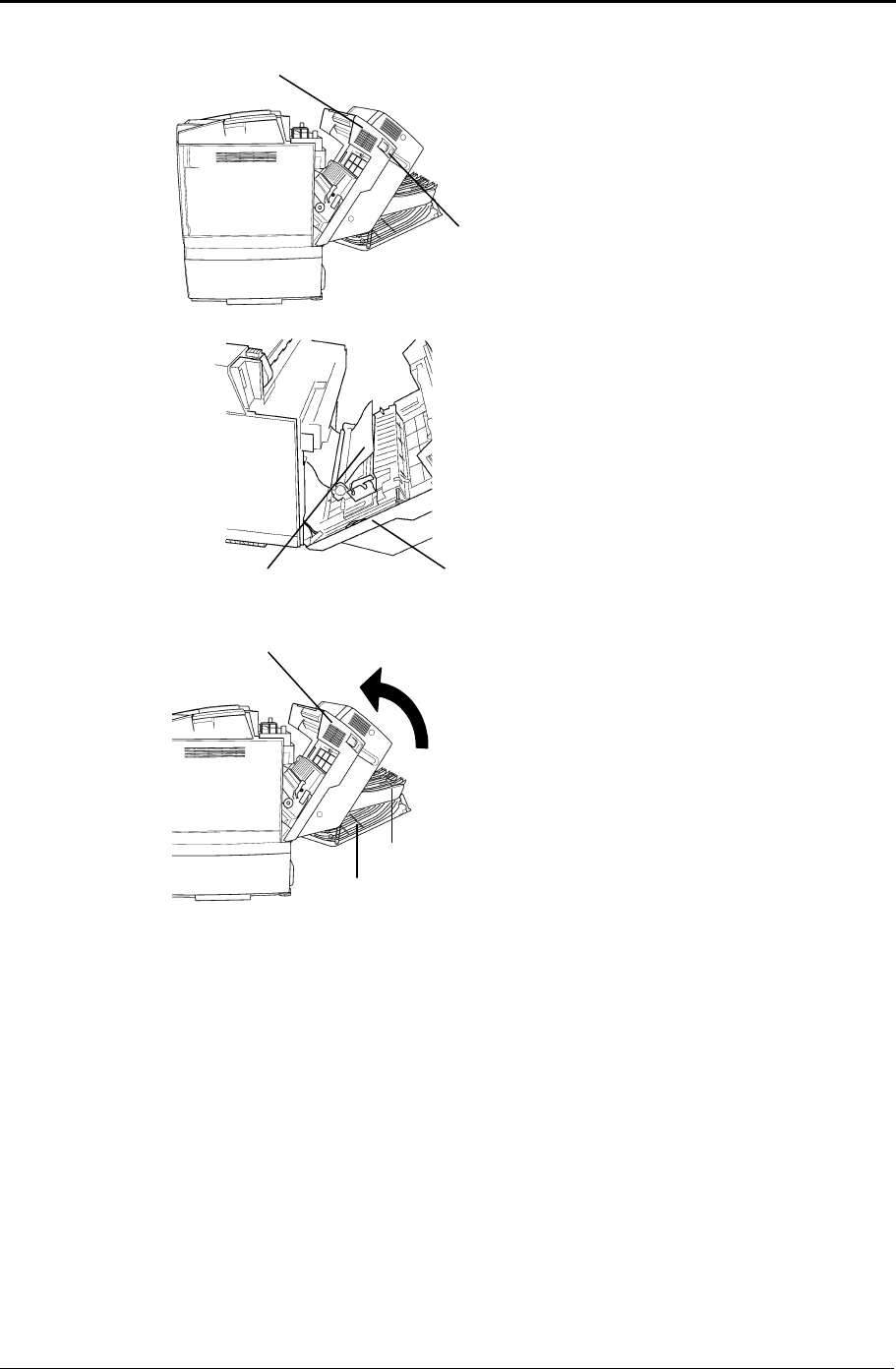

4. Pull the lever on the Back cover to
unlock the back cover, and open
the back cover supporting it until it
has hinged fully back. Keep the
back cover fully open.
5. Remove the jammed media.
X The toner on the paper is not
fixed. Pay attention not to soil
your hands or clothes.
X Never touch the transfer Belt.
Otherwise, printing quality may
be degraded.
6. Close the paper reverse unit and
the duplex cover.
7. Close but still support the back
cover until it locks into place.
Lever
Back cover
Back cover Jammed media
Back cover
Paper reverse unit
Duplex cover
