4-12 Service Manual
5055-01x
LED Printhead Removal
1. Open the top unit, remove the top cover, toner cartridges and
photoconductor drum units.
Note: Remove the transfer belt, or spread a cloth or paper over the
transfer belt to protect it from damage.

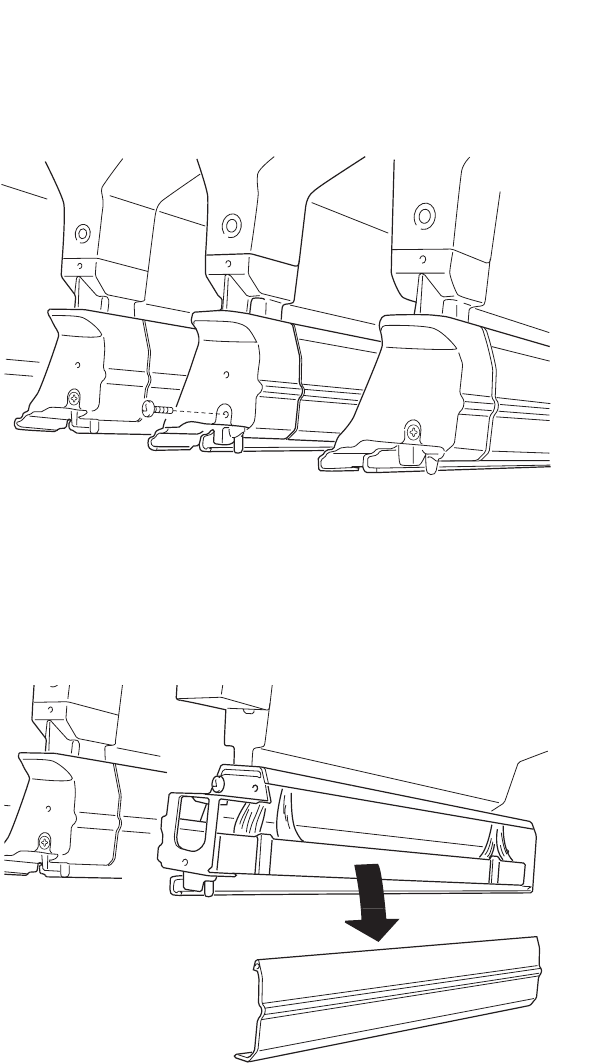

2. Remove the screw from the printhead holder, and remove the
holder.
3. Remove the front and rear printhead springs.
4. Remove the two screws (front and rear) from the right slide rail,
and remove the rail.
