4-14 Service Manual
5055-01x
Eraser Removal
1. Remove the appropriate printheads. Spread a cloth or paper
over the transfer belt to protect it from damage.

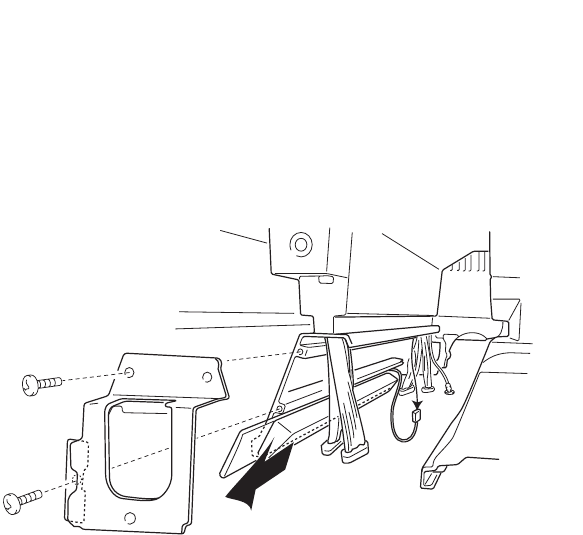

2. Remove the two screws from HSP holder, and remove the
holder.
3. Remove the top cover.
4. Disconnect the connector (see arrow).
5. Remove the eraser.
