1-28 Service Manual
5055-01x

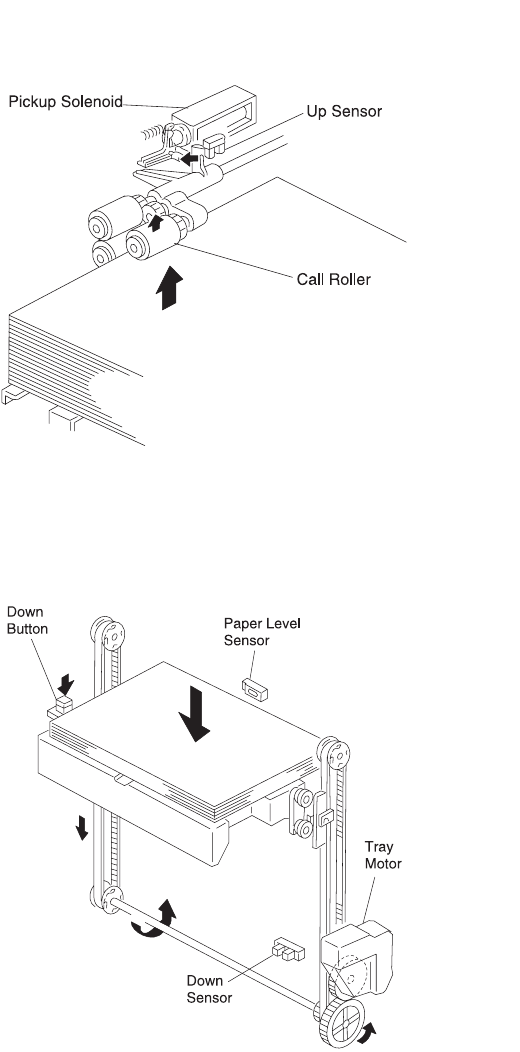

When the down button is pressed, the tray motor reverses to move
the tray down. During the down motion of the tray, as the top surface
of paper passes the paper level sensor, the tray motor stops. The
tray moves down by about 500 sheets. The down sensor detects the
tray lower limit position.
