4-52 Service Manual
5055-01x

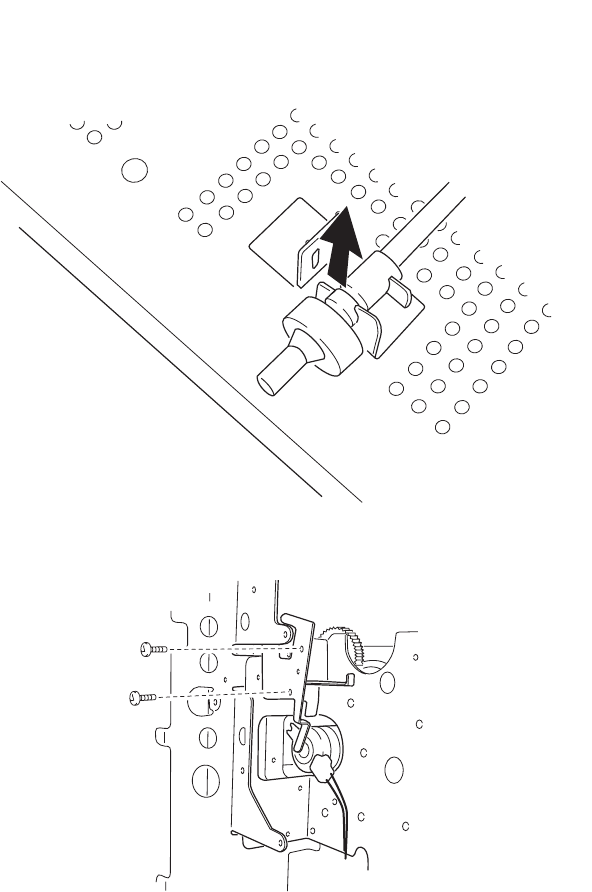

14. Remove the bearing from the belt up/down switching shaft and
remove the belt up/down switching shaft.
15. Remove the screw from the clutch stopper. The clutch stopper
is attached to the ground plate with two screws.
