4-46 Service Manual
5055-01x
Power Switch Removal
1. Remove the upper cassette, left front cover, paper feed cover,
and left side cover.

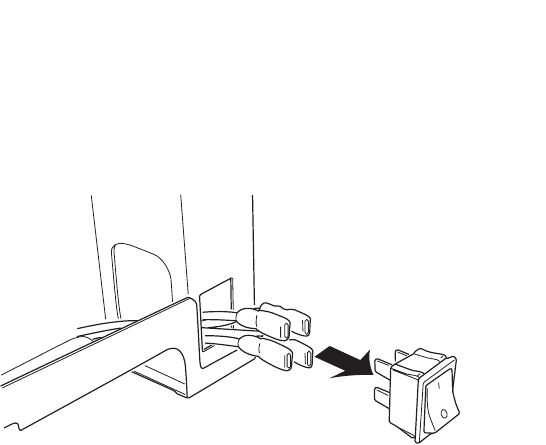

2. Unlock the power switch and pull out the power switch.
3. Remove each terminal connected to the power switch.
Note: When connecting, be careful to connect the connectors
correctly. Insert the insulator cover completely covering the terminal.
