4-26 Service Manual
5055-01x

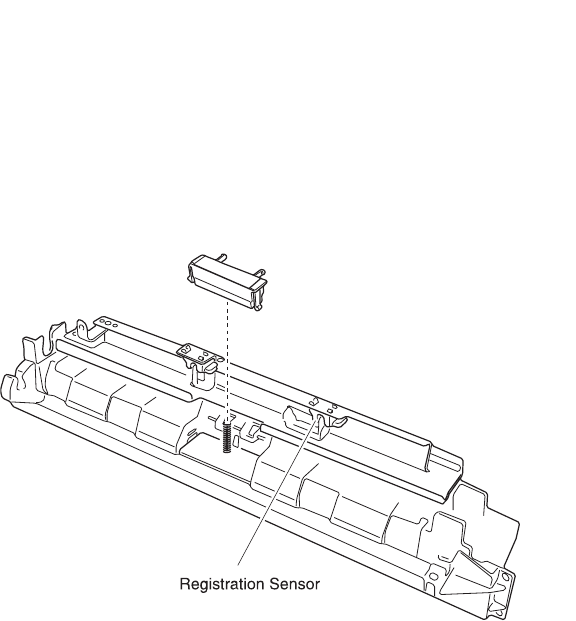

Registration Sensor Removal
1. Open the top unit and remove the upper cassette, front cover,
turn guide, multi-purpose feeder, right side cover, and multi-
purpose feeder frame.
2. Disconnect the connector of the registration sensor and remove
the sensor.
