Repair Information 4-73
5055-01x

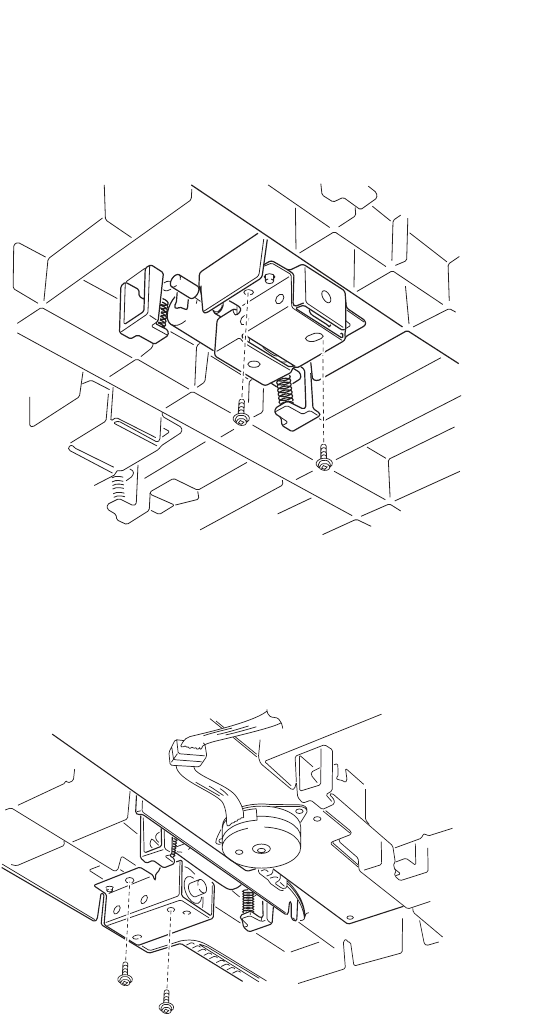

Duplex Pressure Roller and Solenoid Removal
1. Remove the two screws securing the pressure roll solenoid
assembly.
Duplex Feed Roller And Solenoid Removal
1. Remove the two screws securing the feed roll solenoid
assembly.
2. Remove the pressure roller and springs.
3. Remove the feed roller and springs.
