Turn Guide Cover Sensor Removal
1. Open the top unit and remove the upper cassette, front cover,
multi-purpose feeder, right side cover, and turn guide.

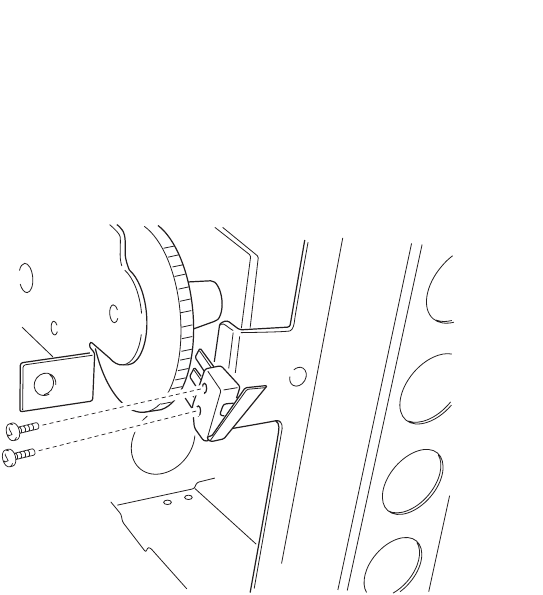

2. Remove the two screws from turn guide sensor, and remove the
sensor.
3. Remove the terminal.
