4-56 Service Manual
5055-01x

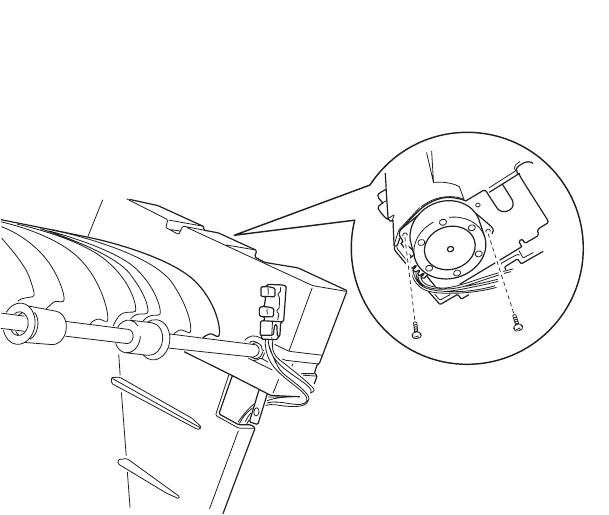

5. Remove the two screws of the motor from the face-down guide
assembly. Remove the assembly.
Note: When the motor is installed, press the motor 45 degrees in an
upward direction when viewing from the rear.
6. Remove the face-down paper delivery full sensor from the face-
down guide assembly.
