Cooling Fan Removal
7-26 Removal/Replacement Procedures
Cooling Fan Removal
To remove the cooling fan:
1 Open the back cover.
2 Remove the fuser drive cover (three screws).
3 Disconnect CN21.
4 Remove the cooling fan (four screws).

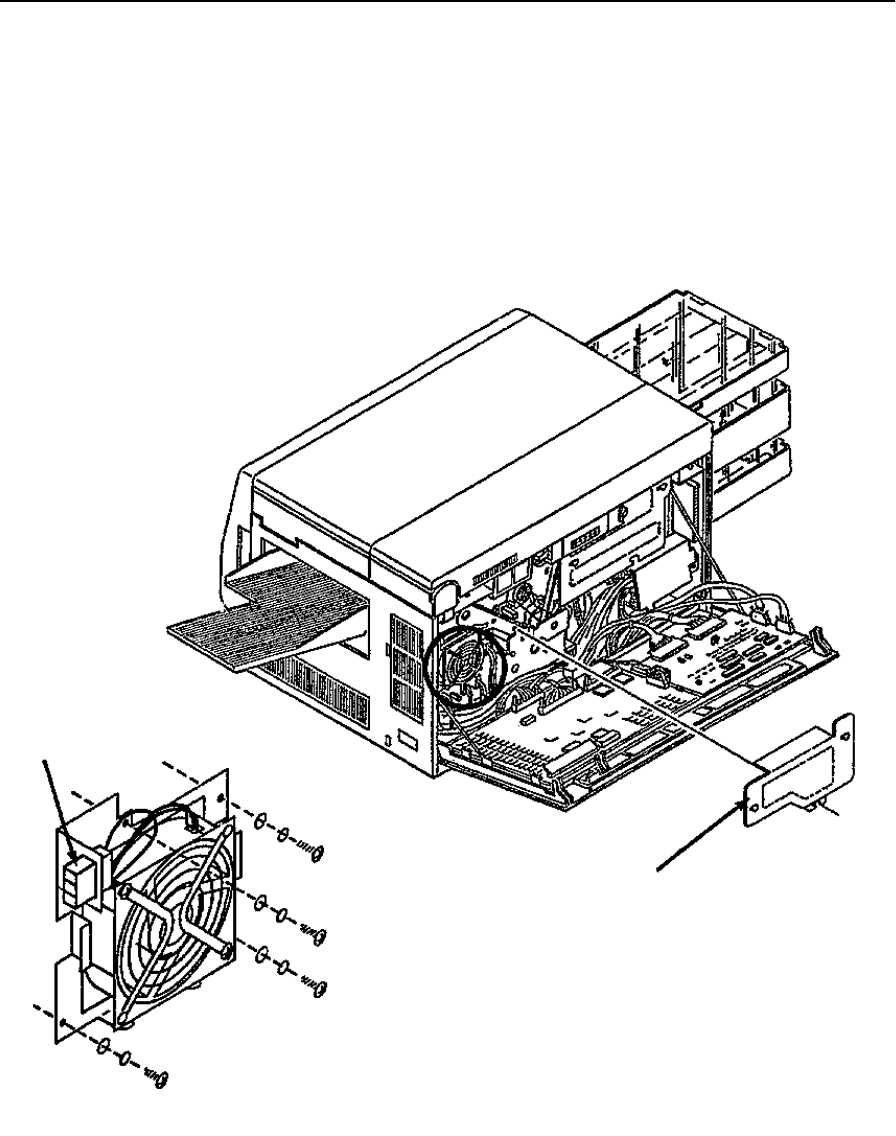

Fuser Drive Cover
CN21
Cooling Fan Detail
