Main Gear Drive Removal
7-88 Removal/Replacement Procedures
Main Gear Drive Removal
To remove the main gear drive:
1 Open the back cover.
2 Remove the lower back cover. (See page 7-7.)
3 Remove the paper feed drive cover (three screws).
4 Remove the fuser drive cover (three screws).
5 Remove the main drive cover (one screw).
6 Remove the gear stay cover (one screw).
7 Remove the gear stay (three screws).
8 Remove the cleaner drive belt. (See page 7-54.)
9 Remove the paper feed drive belt. (See page 7-58.)
10 Remove the main gear drive (three screws).

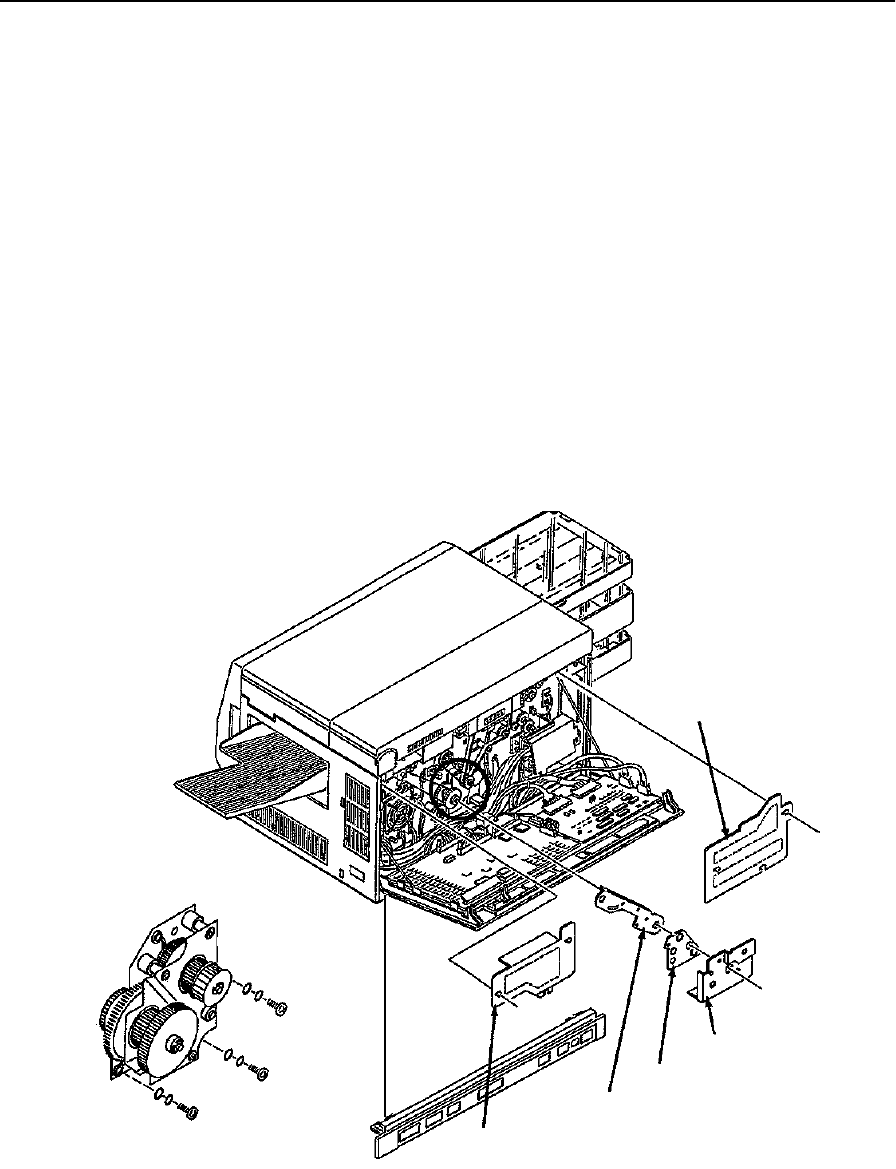

Fuser Drive Cover
Gear Stay
Gear Stay Cover
Main Drive
Paper Feed
Drive Cover
Main Gear Drive Detail
Cover
