Jogging Motor Control Board Removal
Removal/Replacement Procedures 7-39
Jogging Motor Control Board Removal
To remove the jogging motor control board:
1 Open the back cover.
2 Remove the paper feed drive cover (three screws).
3 Remove the power control board cover (one screw).
4 Disconnect CN100, CN101, and CN102.
5 Disengage the board. To do this, pinch the two standoffs on the board.
6 Lift the board from its mounting bracket.

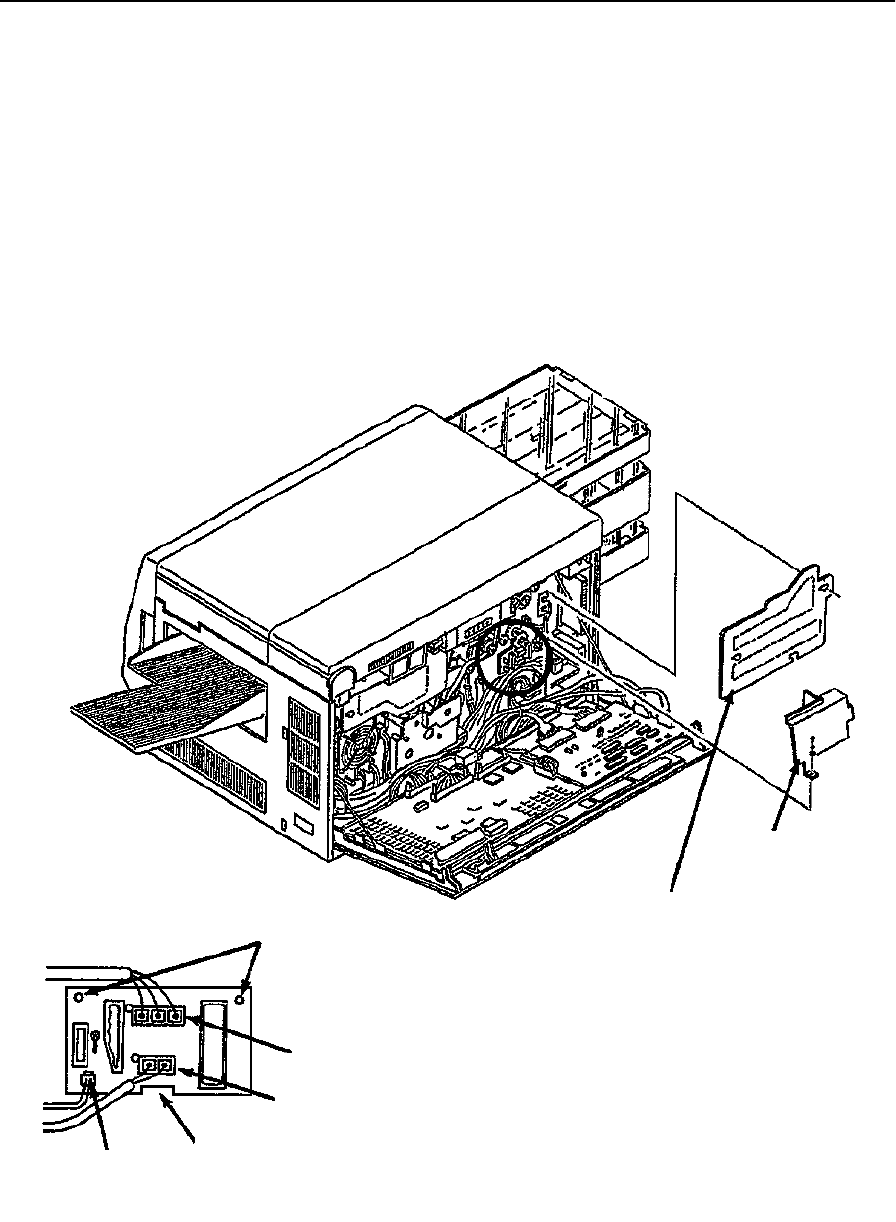

Power Control
Board Cover
Paper Feed Drive Cover
Standoffs
CN101
CN100
CN102
Mounting Bracket
Jogging Motor Power Control Board Detail
