“C” Roller Removal
7-98 Removal/Replacement Procedures
“C” Roller Removal
To remove the “C” roller:
1 Open the top cover.
2 Remove the rear duplex cover. (See page 7-17.)
3 Remove the upper duplex roller cover (four screws).
4 Remove the front mechanism cover (two screws).
5 Remove the front C-clip and bearing from the “C” roller.
6 Slide the “C” roller out from the back of the printer.

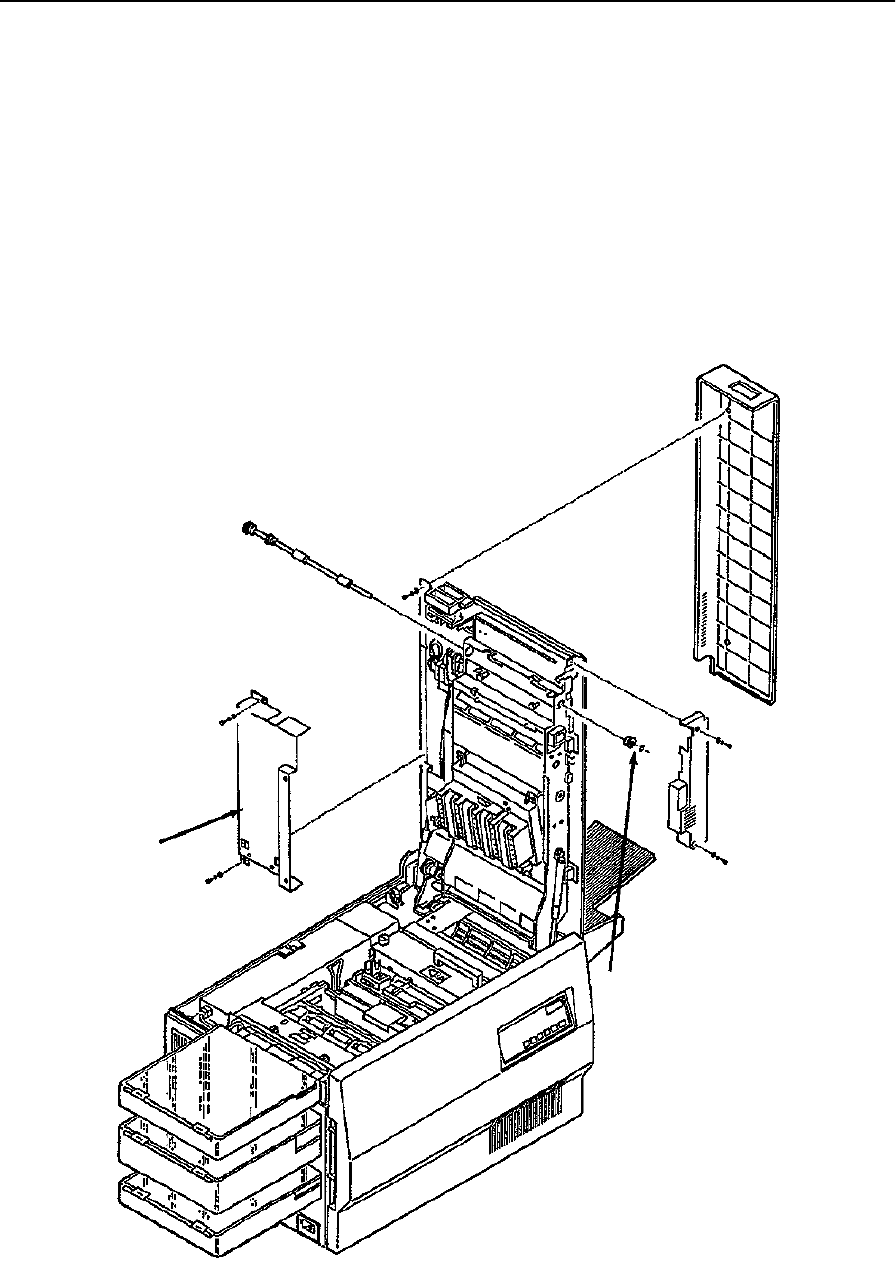

Upper Duplex
Roller Cover
C-Clip and Bearing
