www.honeywell.com/sensing

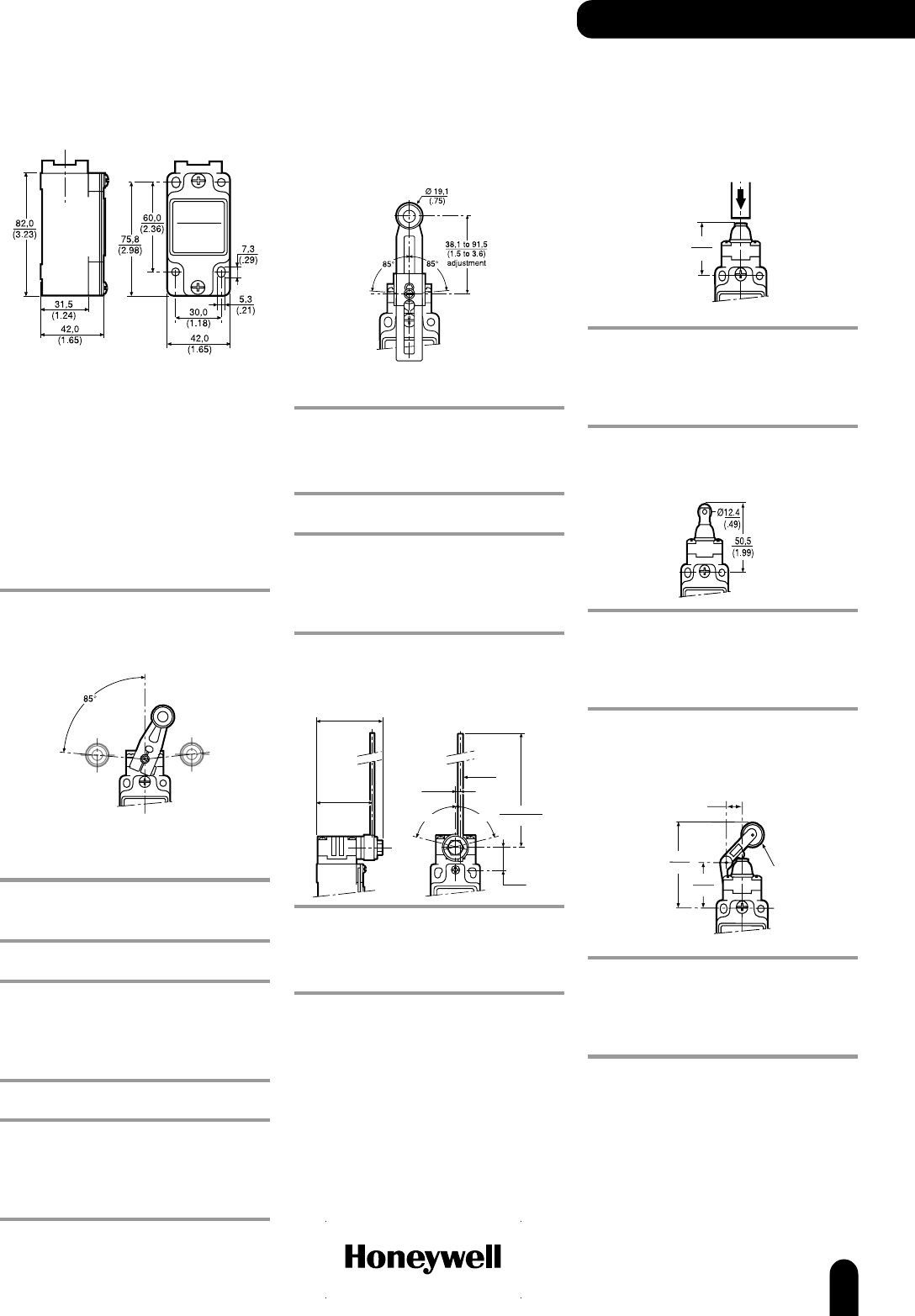

GLA EN 50041
Standard metal body
Mechanical life: up to 15 million
Sealing: IP 67, NEMA 1, 4, 12, 13
Operating temperature: -25 °C to 85 °C
(-13 °F to 185 °F)
Approvals: IEC/EN 60947-5-1
AC15 A300/A600
DC13 Q300
UL, CSA, CE
Switching options:
SPDT Single Pole, Double Throw
Snap action contacts (1NC/1NO)
DPDT Double Pole, Double Throw
Snap action contacts (2NC/2NO)
HEAD OPTIONS
Side rotary
No lever
Levers: Levers for side rotary types are ordered
separately (see pages 69-71 for details)
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01A
DPDT ½ in NPT GLAA20A
SPDT PG 13,5 GLAB01A
Plastic roller
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01A1A
DPDT ½ in NPT GLAA20A1A
SPDT PG 13,5 GLAB01A1A
DPDT PG 13,5 GLAB20A1A
SPDT 20 mm GLAC01A1A
DPDT 20 mm GLAC20A1A
Metal roller
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01A1B
DPDT ½ in NPT GLAA20A1B
SPDT PG 13,5 GLAB01A1B
DPDT PG 13,5 GLAB20A1B
SPDT 20 mm GLAC01A1B
DPDT 20 mm GLAC20A1B
Side rotary adjustable roller
Plastic roller
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01A2A
DPDT ½ in NPT GLAA20A2A
SPDT PG 13,5 GLAB01A2A
DPDT PG 13,5 GLAB20A2A
SPDT 20 mm GLAC01A2A
Metal roller
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01A2B
DPDT ½ in NPT GLAA20A2B
SPDT PG 13,5 GLAB01A2B
DPDT PG 13,5 GLAB20A2B
SPDT 20 mm GLAC01A2B
DPDT 20 mm GLAC20A2B
Side rotary adjustable metal rod
34
(1.34)
41
(1.61)
¯ 3,2
(.13)
75˚75˚
15
(.6)
32 - 134
(1.26 - 5,28)
4,5
(.17)
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01A4J
DPDT ½ in NPT GLAA20A4J
SPDT PG 13,5 GLAB01A4J
DPDT PG 13,5 GLAB20A4J
SPDT 20 mm GLAC01A4J
Top pin plunger
37,5
(1.48)
FP
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01B
DPDT ½ in NPT GLAA20B
SPDT PG 13,5 GLAB01B
DPDT PG 13,5 GLAB20B
SPDT 20 mm GLAC01B
DPDT 20 mm GLAC20B
Top roller plunger
FP
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01C
DPDT ½ in NPT GLAA20C
SPDT PG 13,5 GLAB01C
DPDT PG 13,5 GLAB20C
SPDT 20 mm GLAC01C
DPDT 20 mm GLAC20C
Top roller lever
35
(1.38)
65,2
(2.51)
Ø 18,7
(.74)
13,0
(.51)
FP
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01D
DPDT ½ in NPT GLAA20D
SPDT PG 13,5 GLAB01D
DPDT PG 13,5 GLAB20D
SPDT 20 mm GLAC01D
DPDT 20 mm GLAC20D
GLOBAL LIMIT SWITCHES
