86
www.honeywell.com/sensing

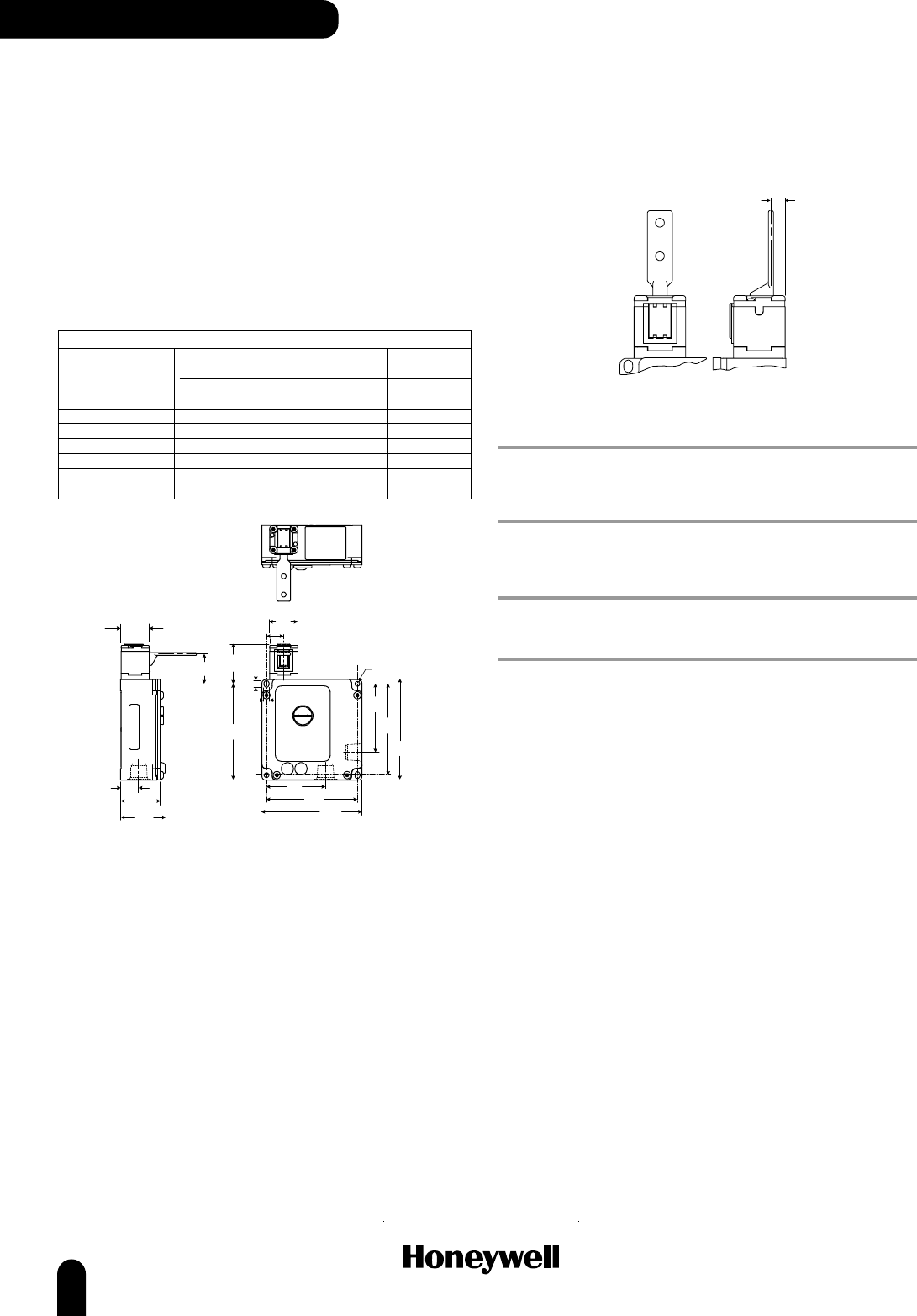

GKL/GKR Series (continued)
Key: Type 6 Straight
Type 9 Side - side, spring loaded
Type X No key
Latching mechanism: Type A Mechanical (solenoid unlock with
screwdriver)
Type B Mechanical (without override)
Type S Electrical (solenoid unlock with
screwdriver)
Solenoid voltage:
Type 2 24 Vdc
Type 4 120 Vac
Electrical ratings:
OPTIONS
Opening to front and top
Left
1/2 in - NPT buna-n seals
CONTACT KEY LATCHING SOLENOID REFERENCE
TYPE TYPE VOLTAGE
3 (1NC/1NO, BBM) None A 24 Vdc GKLE3LXA2
40 (4NC) None A 24 Vdc GKLE40LXA2
46 (3NC, BBM) None A 24 Vdc GKLE46LXA2
Right
1/2 in - NPT buna-n seals
CONTACT KEY LATCHING SOLENOID REFERENCE
TYPE TYPE VOLTAGE
40 (4NC) None A 24 Vdc GKRE40LXA2
46 (3NC, BBM) None A 24 Vdc GKRE46LXA2
IEC 60947-5-1/EN 60947-5-1
Designation & Utilization
Rated operational current le (A) VA
Category
at rated operational voltage Ue rating
120 V 240 V 380 V 480 V 500 V 600 V Make Break
AC15 A600 6 3 1,9 1,5 1,4 1,2 7200 720
AC15 A300 6 3 ----7200 720
AC15 B300 3 1.5 ----3600 360
AC14 D300 0,6 0,3 ---- 43272
125 V 250 V
DC13 Q300 0,55 0,27 69 69
DC13 R300 0,22 0,1 28 28
32,5 /
1.28
33 /
1.30
20 /
0.79
43 /
1.69
48,8 /
1.92
110 /
4.33
100 /
3.94
19 /
0.75
65 /
2.56
75 /
2.95
110 /
4.33
100 /
3.94
31 /
1.22
43,7 /
1.72
105,3 /
4.13
2 x 5,3 /
0.21
2 x 7,3 /
0.29
2 x ΓΈ 5,3 /
0.21
SAFETY SWITCHES
