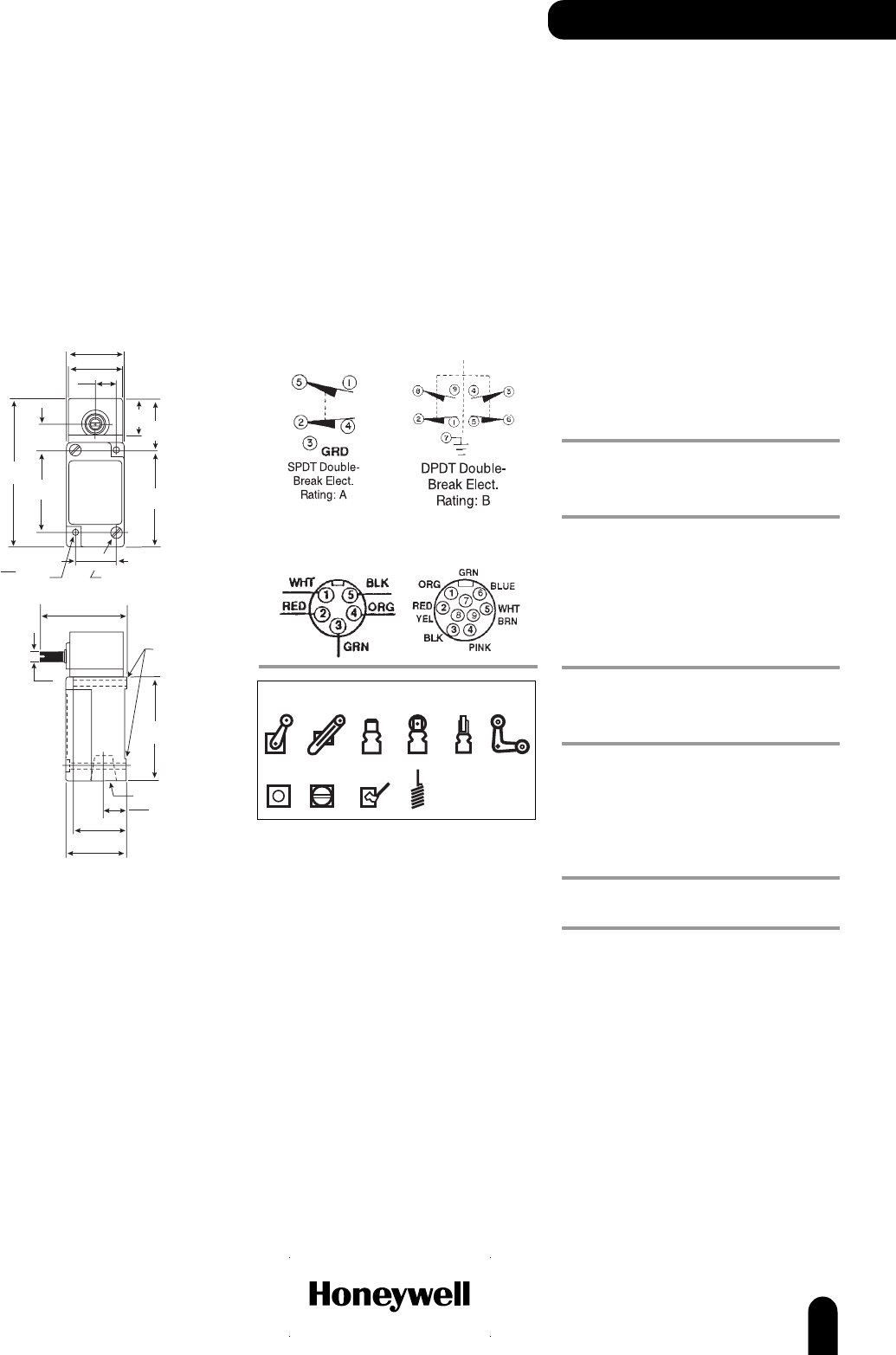

Fully potted HDLS
Fully potted HDLS are designed to meet the
demanding requirements of NEMA 1, 3, 4, 6, 6P
and 13 for wet applications where the integrity of
the conduit seal must be assured. These switches
are the same as the standard HDLS non plug in
limit switch except that the conduit entrance is
factory sealed to simplify installation and ensure
integrity of the conduit seal. They are epoxy filled
and supplied with six feet of 5 or 9 conductor 16
gauge STO cable. Fully potted HDLS are built with
all Fluorocarbon seals. Sealing exceeds Nema 6P.
Low temperature versions are available, see page
4 for temperature range and how to order.
106,7
4.20
59,4
2.34
19,0
0.75
29,4
1.16
70,4
2.77
36,6
1.44
25,4
1.00
5,2
0.20
Ø Mtg holes
(2)
10-32 UNF tapped
from rear only (2)
41,1
1.62
39,6
1.56
14,7
0.58
62,0
2.44
Mtg pads
74,9
2.95
1/2-14 NPT
20,3
0.80
39,0
1.54
44,4
1.75
7,32
0.29
Approvals:
Connector NEMA 1, 4, 6, 6P, 12, 13
Cable NEMA 1, 4, 6, 6P, 12
UL, CSA, CE
Operating temperature:
Cable versions -12 °C to 105 °C
10 °F to 221 °F
Connector versions -12 °C to 121 °C
10 °F to 250 °F
Cable length: 3,658 m (12 ft)
Contacts: Electrical ratings A, B Silver
Switching options: Snap action contacts
SPDT DPDT
Wiring diagrams: Numbers = Connectors
Colours = Cables
Single-Pole
Double-Pole
Side rotary actuated
switches
Levers: Levers for side rotary
types are ordered separately (see
pages 69-71 for details)
OPTIONS
Standard
Pretravel: 15° max.
Differential travel: SPDT 5° max.
DPDT 7° max.
Overtravel: 60° min.
Operating force: 0,45 N m (4 in lb) max.
CONTACT TERMINATION ELECTRICAL RATING REFERENCE
SPDT Cable A LSYAC3KP-FP
DPDT Cable B LSYAC4LX-FP
SPDT 5-pin Connector A LSYAC3KQ-FP
DPDT 9-pin Connector B LSYAC7LR-FP
Low differential travel
Pretravel: 9° max.
Differential travel: SPDT 3° max.
DPDT 4° max.
Overtravel: 66° min.
Operating force: 0,45 N m (4 in lb) max.
CONTACT TERMINATION ELECTRICAL RATING REFERENCE
SPDT Cable A LSYPC3KP-FP
DPDT Cable B LSYPC4LX-FP
SPDT 5-pin Connector A LSYPC3KQ-FP
DPDT 9-pin Connector B LSYPC7LR-FP
5° Pretravel
Pretravel: 5° max.
Differential travel: SPDT 3° max.
Overtravel: 70° min.
Operating force: 0,45 N m (4 in lb) max.
CONTACT TERMINATION ELECTRICAL RATING REFERENCE
SPDT Cable A LSYUC3KP-FP
SPDT 5-pin Connector A LSYUC3KQ-FP
For low temperature versions
substitute “Y_B” for “Y_C”
