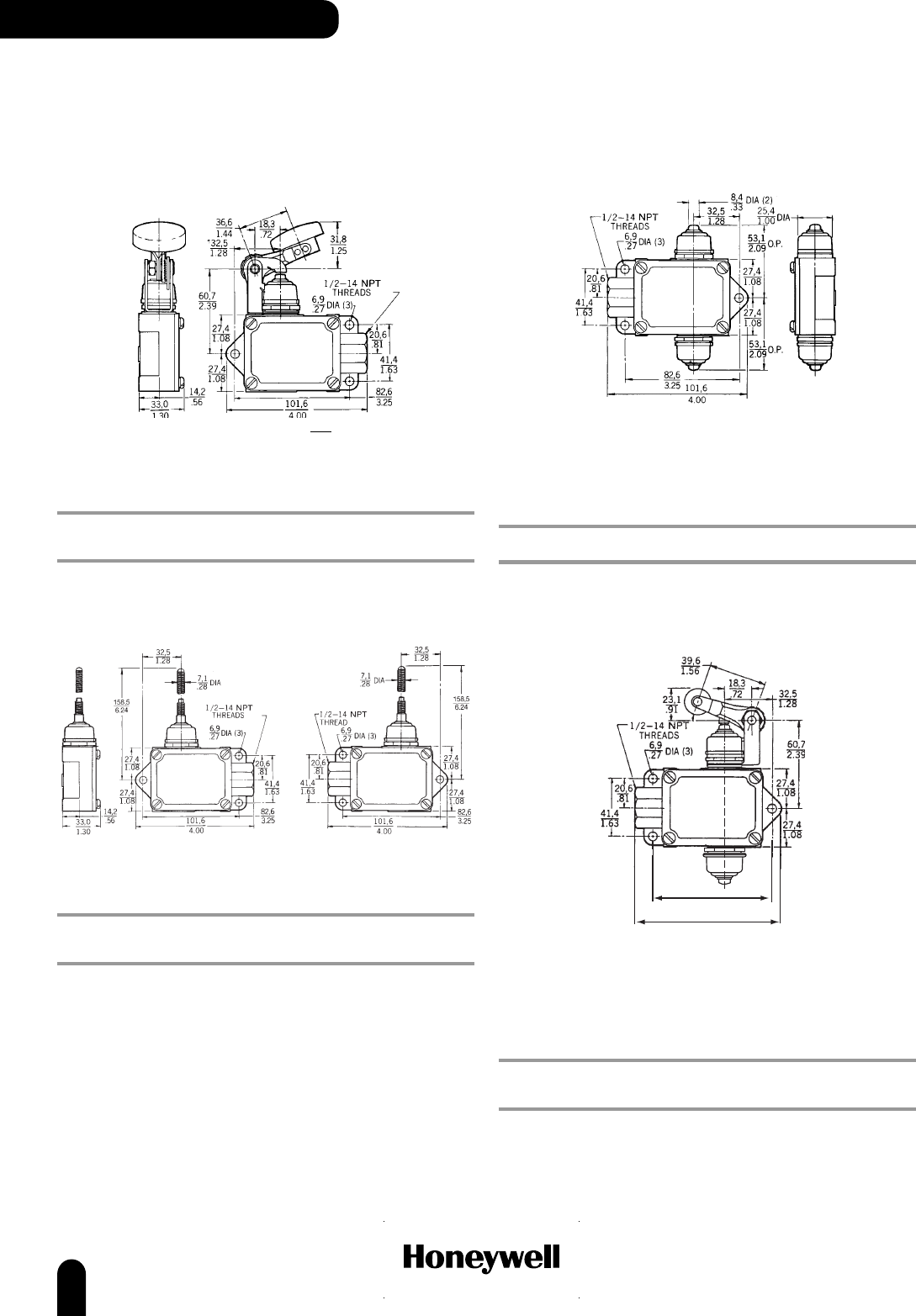

BAF/DTF Series
Momentary contact (continued)
Manual palm button
Left-hand
*28,2
on DTF2 Types
1.11
With boot seal
Operating force max. (OF): 8,90 N (2.0 lb)
ACTUATOR POSITION CONTACT ELECTRICAL RATING REFERENCE
Right SPDT D BAF1-2RN4-RH
Left SPDT D BAF1-2RN4-LH
Wobble, coil spring
Left-hand Right-hand
With boot seal
Pretravel max. (PT): 15°
ACTUATOR POSITION CONTACT ELECTRICAL RATING REFERENCE
Right SPDT D BAF1-2RN18-RH
Left SPDT D BAF1-2RN18-LH
Maintained contact (reset) switches
Top pin plunger
Right-hand
With boot seal
Operating force max. (OF): 7,79 N (1.75 lb)
Pretravel max. (PT): 2,39 mm (0.094 in)
Overtravel min. (OT): 5,56 mm (0.219 in)
ACTUATOR POSITION CONTACT ELECTRICAL RATING REFERENCE
Right Maintained SPDT D BAF1-3RNX1
Roller arm, adjustable
82,6
(3.25)
101,6
(4.00)
With boot seals on roller arm and plunger
Operating force max. (OF): 6,67 N (1.5 lb)
Pretravel max. (PT): 5,56 mm (0.219 in)
Overtravel min. (OT): 6,35 mm (0.25 in)
Operating position (OP): 60,71 mm (2.390 in)
ACTUATOR POSITION CONTACT ELECTRICAL RATING REFERENCE
Right Maintained SPDT D BAF1-3RN2X-RH
Left Maintained SPDT D BAF1-3RN2X-LH
PRECISION LIMIT SWITCHES
