www.honeywell.com/sensing

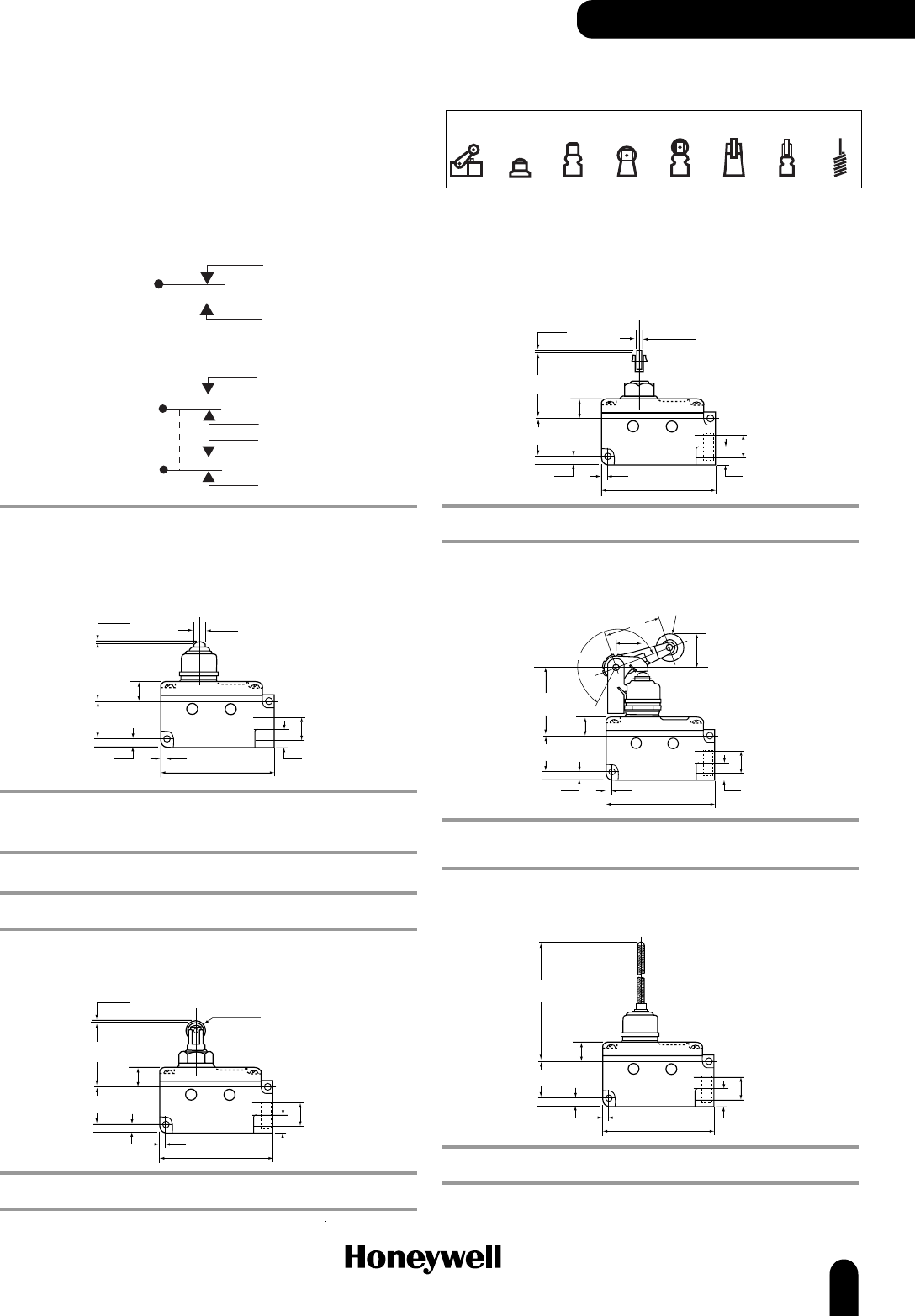

E7 Metal standard enclosed switch
Mechanical life: 10 million
Sealing: Without boot seal IP50 Standard
With boot seal IP65 Sealed
Operating temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Approvals: IEC 60947-5-1
EN 60947-5-1
Switching options:
SPDT Single Pole, Double Throw
Snap action contacts (1NC/1NO)
DPDT Double Pole, Double Throw
Snap action contacts (2NC/2NO)
OPTIONS
Top pin plunger
With boot seal
38,58
(1.519)
1,93
(0.076)
Pretravel
13,97
(0.55)
25,4
(1.00)
5,84
(0.23)
4,06
(0.16)
12,7
(0.50)
Ø 14,73
(0.58)
OP
Ø 8,38
(0.33)
76,40
(3,01)
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT PG 13.5 BZE7-2RN-PG
SPDT 20 mm BZE7-2RN-C
DPDT PG 13.5 DTE7-2RN-PG
Without boot seal
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT PG 13.5 BZE7-2RQ-PG
Top roller plunger, parallel, without boot seal
44,5
(1.75)
3,8
(0.15)
Pretravel
13,97
(0.55)
25,4
(1.00)
5,84
(0.23)
4,06
(0.16)
12,7
(0.50)
Ø 14,73
(0.58)
OP
Ø 12,7 x 4,5 wide roller
(Ø 0.50 x 0.18)
76,40
(3,01)
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT PG 13.5 BZE7-2RQ8-PG
Top roller plunger, perpendicular, without boot seal
44,53
(1.75)
0,38
(0.015)
Pretravel
13,97
(0.55)
25,4
(1.00)
5,84
(0.23)
4,06
(0.16)
12,7
(0.50)
Ø 14,73
(0.58)
OP
Ø 12,7 x 4,57
(0.50 x 0.18)
76,40
(3,01)
Wide roller
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT PG 13.5 BZE7-2RQ81-PG
Top roller lever, boot seal
48,11
(1.894)
13,97
(0.55)
25,4
(1.00)
5,84
(0.23)
4,06
(0.16)
12,7
(0.50)
Ø 14,73
(0.58)
Ø 19,05 x 7,92 wide roller
(Ø 0.75 x 0.312)
76,40
(3,01)
225˚
18,29
(0.72)
39,88
(1.57)
24,38
(0.91)
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT PG 13.5 BZE7-2RN2-PG
SPDT 20 mm BZE7-2RN2-C
Wobble, coil spring, boot seal
151,13
(5.95)
13,97
(0.55)
25,4
(1.00)
5,84
(0.23)
4,06
(0.16)
76,40
(3,01)
12,7
(0.50)
Ø 14,73
(0.58)
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT PG 13.5 BZE7-2RN18-PG
PRECISION LIMIT SWITCHES
Actuators
