72
www.honeywell.com/sensing

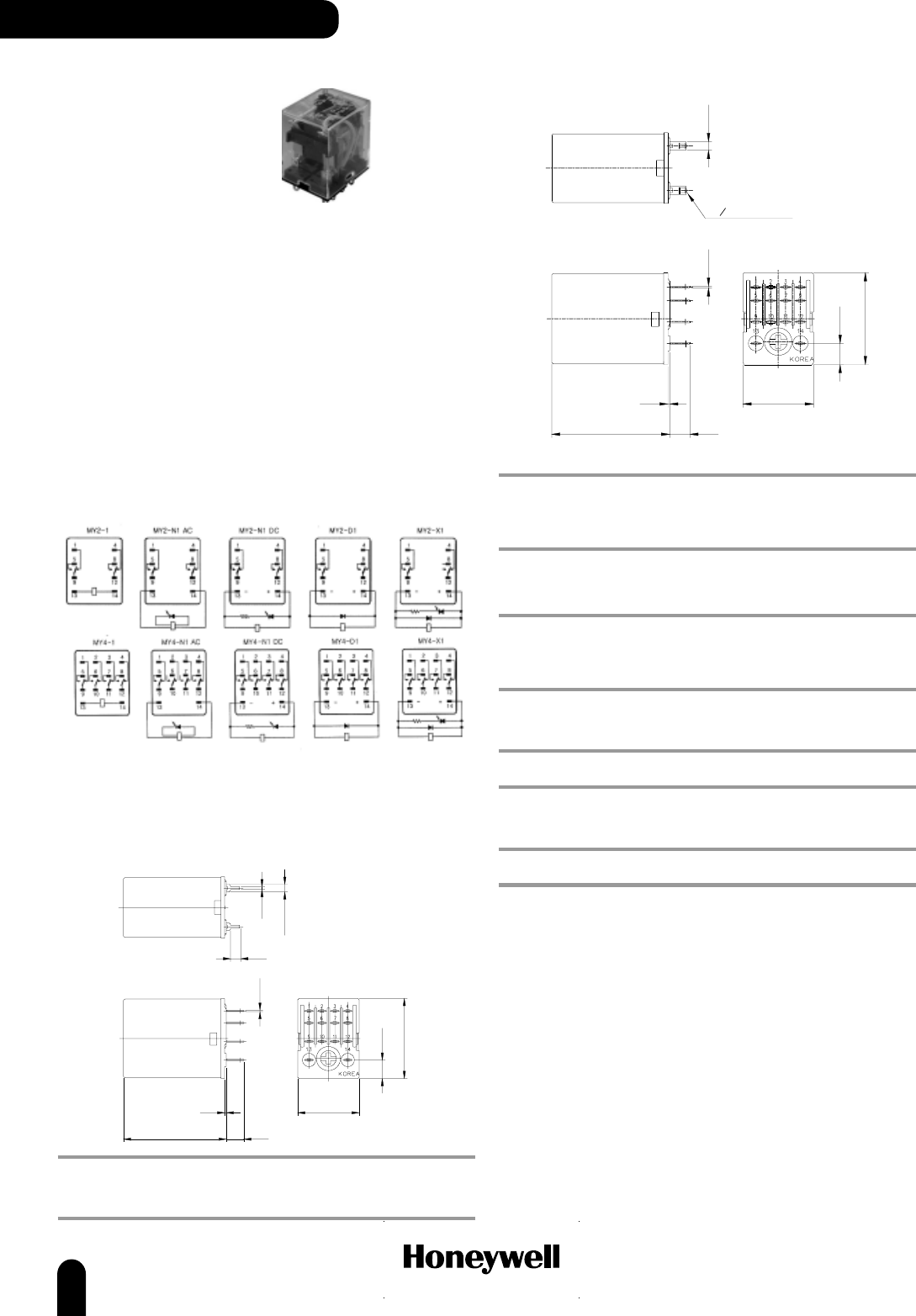

MY2 Series
OPTIONS
Standard, PCB Terminal, DPDT
3,5
[0.14]
1,0
[0.04]
3,3
[0.13]
0,5
[0.02]
0,5
[0.02]
Max. 36,0 [1.42]
6,0
[0.24]
Max. 21,5
[0.85]
6,3
[0.25]
Max. 28,0
[1.10]
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
110/120 Vac 250 Vac/5 amp SZR-MY2-1P-AC110-120V
220/240 Vac 250 Vac/5 amp SZR-MY2-1P-AC220V-240V
24 Vdc 125 Vdc/1 amp SZR-MY2-1P-DC24V
POWER RELAYS
SZR-MY
Series Power
Relay
Solder/Plug-In Terminal, DPDT
8 - O 1,2 [0.05] x 3 Holes
2,6
[0.10]
0,5
[0.02]
0,5
[0.02]
6,0
[0.24]
Max. 36,0 [1.42]
Max. 21,5
[0.85]
Max. 28,0 [1.10]
6,3
[0.25]
Standard
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
110/120 Vac 250 Vac/5 amp SZR-MY2-1-AC110-120V
220 Vac 250 Vac/5 amp SZR-MY2-1-AC220V
12 Vdc 125 Vdc/1 amp SZR-MY2-1-DC12V
24 Vdc 125 Vdc/1 amp SZR-MY2-1-DC24V
LED Indicator
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
110/120 Vac 250 Vac/5 amp SZR-MY2-N1-AC110-120V
220 Vac 250 Vac/5 amp SZR-MY2-N1-AC220V
12 Vdc 125 Vdc/1 amp SZR-MY2-N1-DC12V
24 Vdc 125 Vdc/1 amp SZR-MY2-N1-DC24V
Diode Protection
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
24 Vdc 125 Vdc/1 amp SZR-MY2-D1-DC24V
LED Indicator/Diode Protection
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
24 Vdc 125 Vdc/1 amp SZR-MY2-X1-DC24V
SZR-MY Series general-purpose power relays are designed for a wide range
of applications including power, as well as logic control, for factory machines
and control panels.
SZR-MY Series relays have a small package design for multiple application
needs. Relays are available in two configurations: DPDT with a 5 A load and
4PDT with a 3 A load. One standard and three options are available: LED
indicator, internal surge protection diode, and LED indicator/diode protection.
Current rating (SZR-MY2): 5 A
Current rating (SZR-MY4): 3 A
Contact resistance: 50 mOhm max.
Contact material: Fine silver
Agency approvals: UL, CE, CSA
Operate time: 20 ms max.
Release time: 20 ms max.
Ambient temperature: -25 °C to 75 °C (-13 °F to 167 °F)
Ambient humidity: 45% RH to 85% RH
Switching options: DPDT, 4PDT
