53
www.honeywell.com/sensing
Stainless steel
HDLS

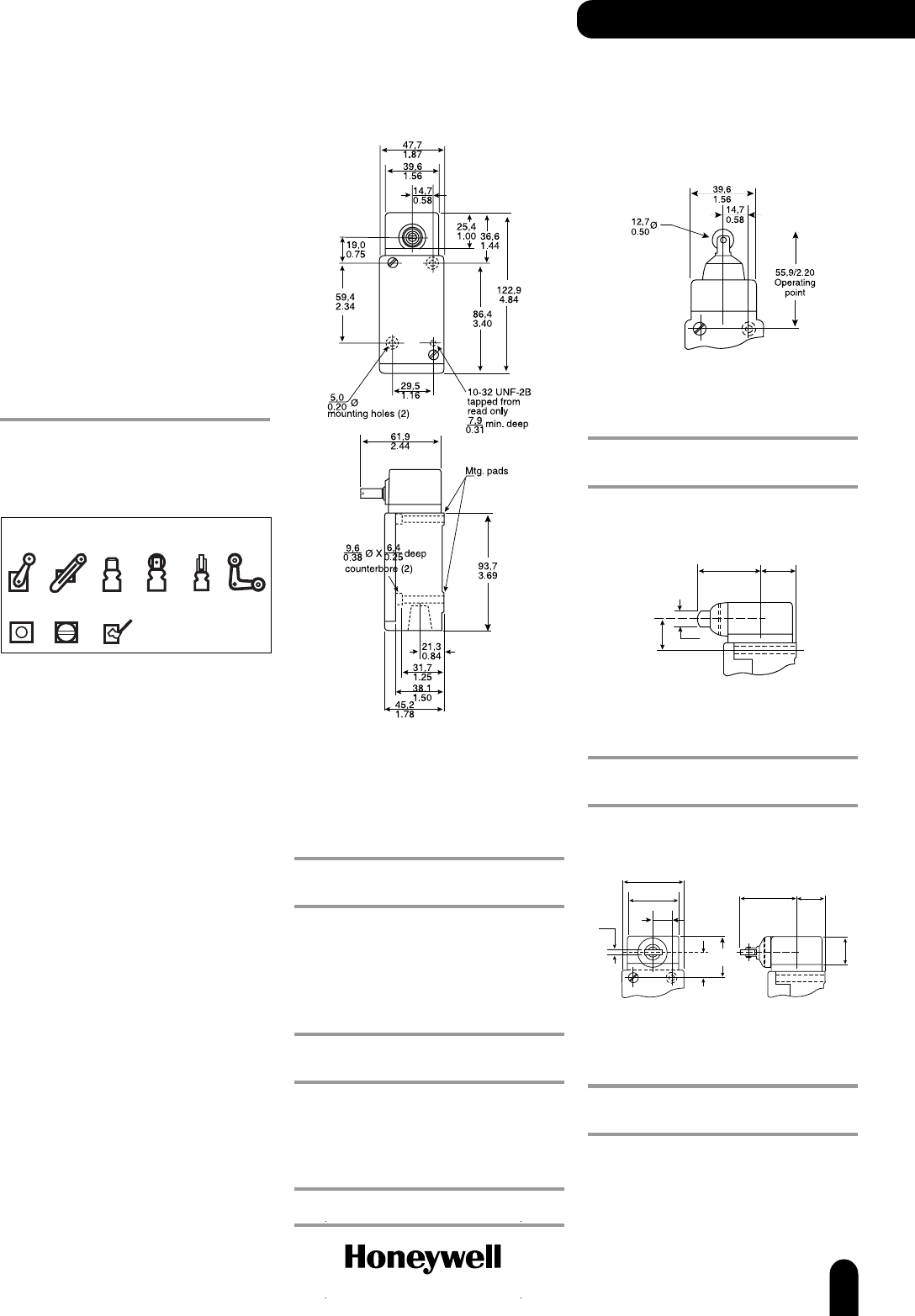

HDLS stainless steel switches are designed for use
in highly corrosive environments such as petro-
chemical plants, food processing plants,
shipboard and dockside locations. The type 316
cast stainless steel body is designed to minimise
crevices where food particles could become
trapped. The actuator, operating head and screws
are also stainless steel. All seals are Fluorocarbon
to provide excellent chemical resistance and to
withstand operating temperatures up to 121 °C
(250 °F) and pressurised steam cleaning.
Approvals: NEMA 1, 3, 3R, 4, 4X, 6, 6P, 12, 13
UL, CSA, CE
Operating temperature: -12 °C to 121 °C
10 °F to 250 °F
Contacts: Electrical ratings A, B Silver
Levers: Levers for side rotary
types are ordered separately (see
pages 69-71 for details)
Side rotary actuated
switches
OPTIONS
Standard
Pretravel: 15° max.
Differential travel: SPDT 5° max.
DPDT 7° max.
Overtravel: 60° min
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LS2A4K
DPDT B LS2A4L
Low Torque
Pretravel: 9° max.
Differential travel: SPDT 3° max.
DPDT 4° max.
Overtravel: 60° min.
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LS2H4K
DPDT B LS2H4L
Centre neutral
Pretravel: 18° max
Differential travel: DPDT 10° max.
Overtravel: 57° min.
CONTACT ELECTRICAL RATING REFERENCE
DPDT B LS2M4N
Plunger actuated switches
OPTIONS
Top roller plunger
Pretravel: 1,78 mm (0.07 in) max.
Differential travel: 0,38 mm (0.015 in) max.
Overtravel: 4,83 mm (019 in) min.
Operating point: 55,9 mm ± 1,02
2.20 in ± 0.04
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LS2D4K
DPDT B LS2D4L
Side pin plunger
33,0
1.30
Operating
point
21,6
0.85
9,4
0.37
19,0
0.75
Pretravel: 2,54 mm (1.00 in) max.
Differential travel: 0,64 mm (0.025 in) max.
Overtravel: 4,83 mm (0.19 in) min.
Operating point: 33 mm ± 0,76
1.3 in ± 0.03
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LS2E4K
DPDT B LS2E4L
Side roller plunger
47,7
1.88
39,6
1.56
14,7
0.58
19,1
0.75
31,5
1.24
4,8
0.19
44,2
1.74
Operating
point
21,6
0.85
20,3
0.80
Pretravel: 2,54 mm (1.00 in) max.
Differential travel: 0,64 mm (0.025 in) max.
Overtravel: 4,83 mm (0.19 in) min.
Operating point: 44,1 mm ± 1,02
1.73 in ± 0.04
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LS2F4K
DPDT B LS2F4L
HEAVY DUTY LIMIT SWITCHES
Actuators
