NOTICE **

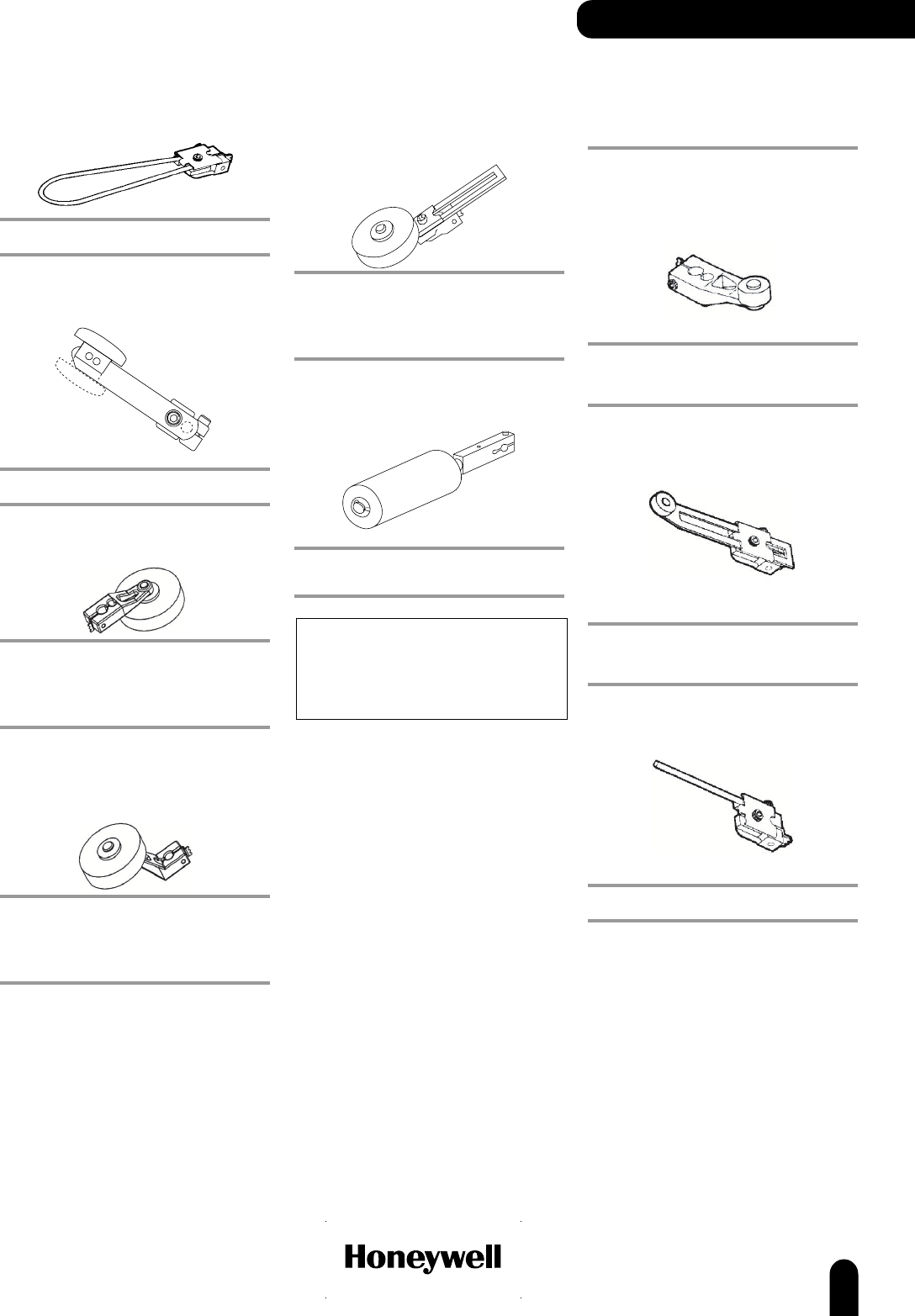

Large rubber rollers and conveyor roller arm
Because of the lever’s mass, the limit switch should be
mounted with the lever facing down. This will enable
gravity to help restore the switch to the free position.
Flexible loop
RADIUS/LENGTH REFERENCE
Flexible loop 6.0 in (152 mm) LSZ61
Hand operated button
REFERENCE
Ø 1.5 in (38,1 mm) 6PA57
**Large rubber roller, fixed lever
REFERENCE
Ø 1.6 in X 0.50 in wide roller LSZ51W
(40,6 mm X 12,7 mm)
Ø 2 in X 0.50 in wide roller LSZ51Y
(50,8 mm X 12,7 mm)
**Large rubber roller, fixed offset
lever
REFERENCE
Ø 1.6 in X 0.50 in wide roller LSZ55W
(40,6 mm X 12,7 mm)
Ø 2 in X 0.50 in wide roller LSZ55Y
(50,8 mm X 12,7 mm)
**Large rubber roller, adjustable
lever
REFERENCE
Ø 1.6 in X 0.50 in wide roller LSZ52W
(40,6 mm X 12,7 mm)
Ø 2 in X 0.50 in wide roller LSZ52Y
(50,8 mm X 12,7 mm)
**Conveyor roller arm
Operating radius/length: 6.78 in (172,2 mm)
REFERENCE
Plastic roller, 1.5 in Ø X 3.8 in long LSZ67AA
(38,1 mm X 96,5 mm)
LEVERS
Stainless steel levers
Roller Diameter: 0.75 in (19,1 mm)
Roller Width: 0.25 in (6,35 mm)
OPTIONS
Standard fixed lever
Operating radius/length: 1.5 in (38,1 mm)
MOUNTED ON REFERENCE
Nylon roller Front LS2Z51A*
Stainless steel roller Front LS2Z51B
Adjustable lever
Operating radius/length: 1.5 in to 3.5 in
(38,1 mm to 88,9 mm)
MOUNTED ON REFERENCE
Nylon roller Back LS2Z52A*
Stainless steel roller Back LS2Z52B
Adjustable rod
Operating radius/length: 13 in (330,2 mm)
REFERENCE
LS2Z54N
Note: Not all levers are compatible with all switches
* denotes lever suitable for Explosion Proof Series switches
