Removal and Installation
8-19
HP DesignJet 5000 and 5500 Series Printers Service Manual

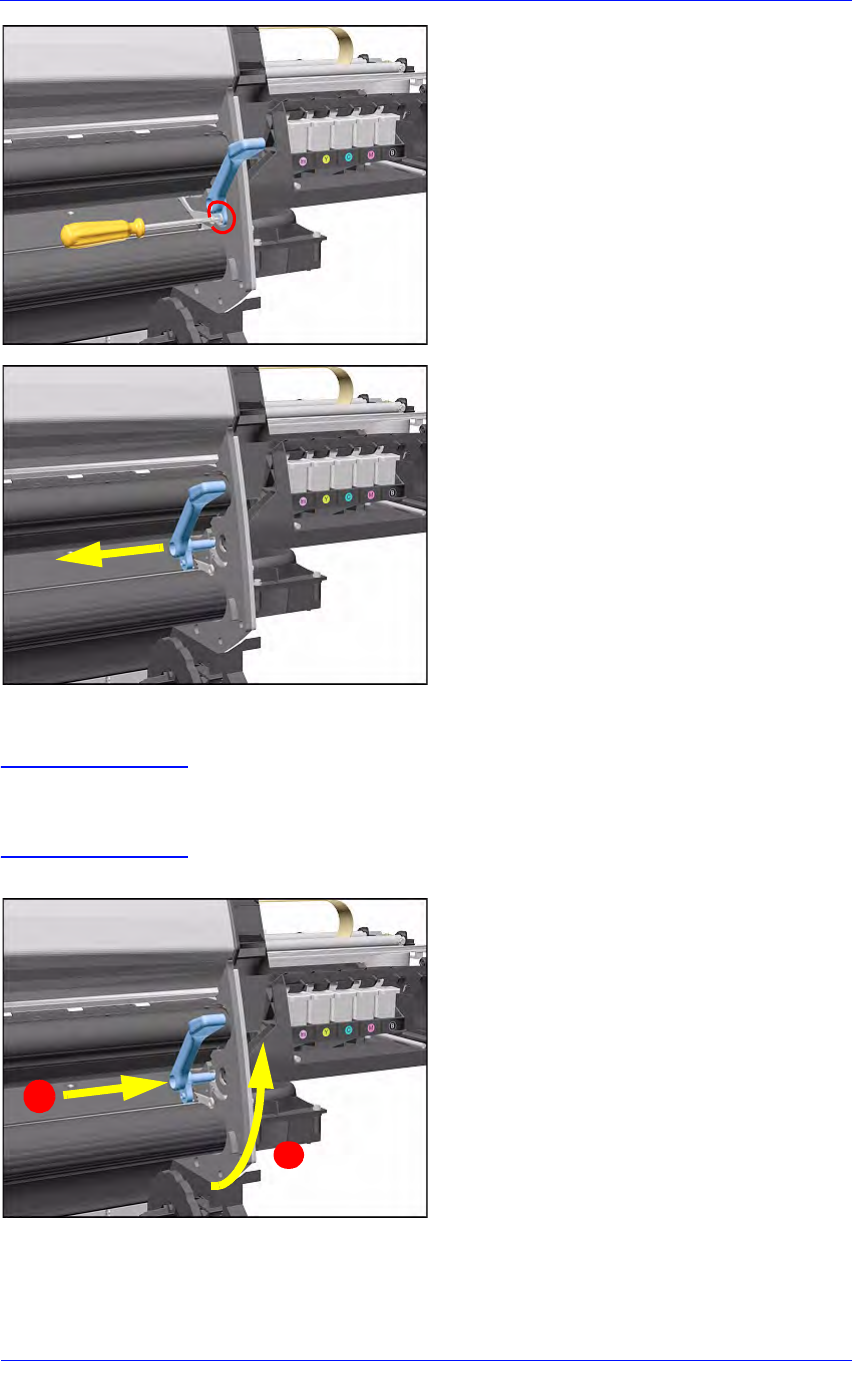

5. Remove 1 T-15 screw (Type H) that
attaches the Lever Arm to the Lever.
6. Remove the Media Lever.
Installation of the Media Lever Assembly
WARNING When installing the Media Lever, you must insert it in the Trim
and Sideplate in the UP position to avoid damaging the Lever
Spring in the Trim.
1
2
