Removal and Installation
8-80
HP DesignJet 5000 and 5500 Series Printers Service Manual

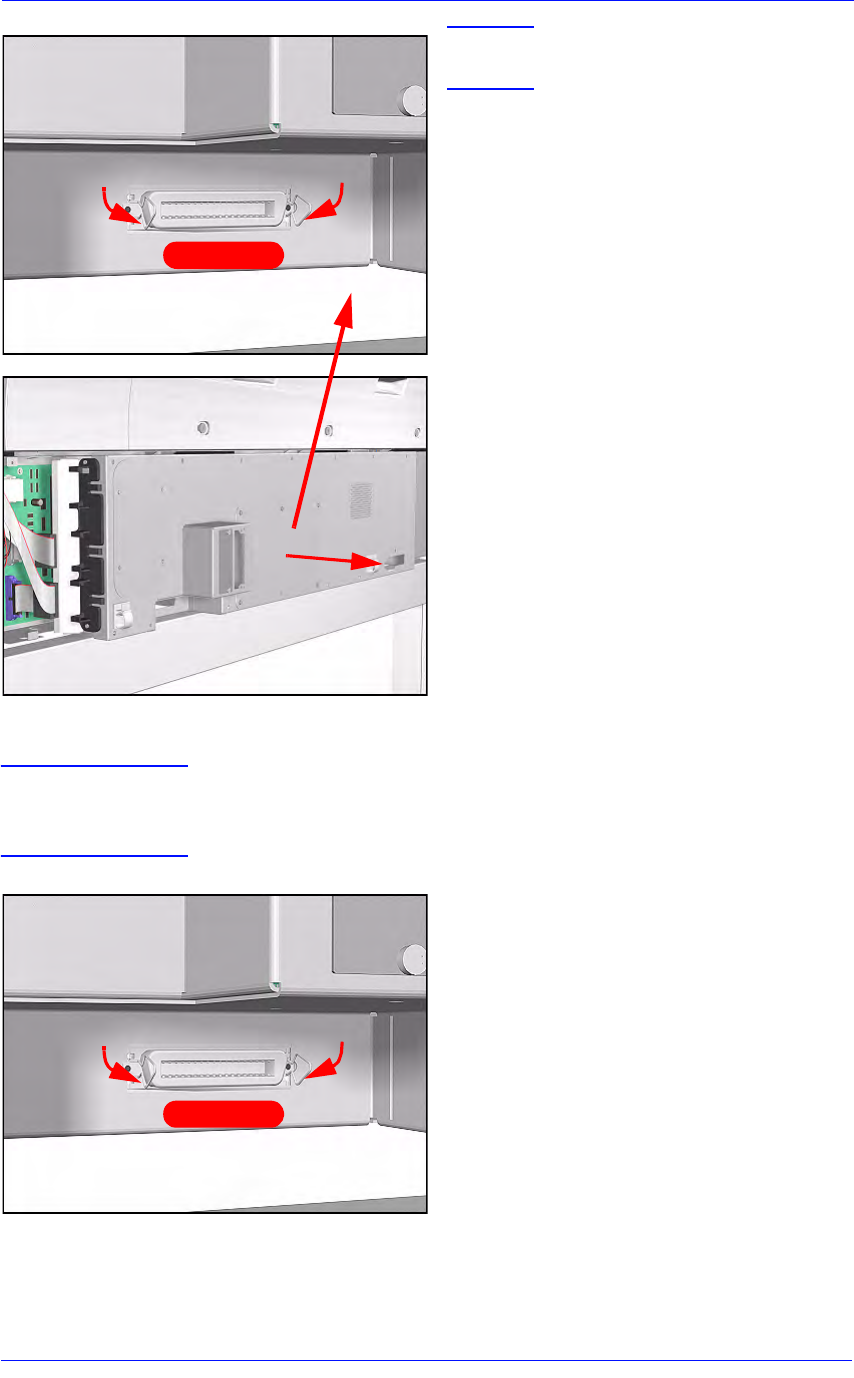

NOTE Lift the Parallel Port Clips
before removing the Cover.
6. Remove the Electronics Module
Cover.
Installation of the Electronics Module Cover
NOTE When Installing the Electronics Module Cover make sure the
parallel port connector clips are in closed position i.e. UP, so that
they pass through the slot in the Cover.
Lift clips
Lift clips
