Removal and Installation
8-34
HP DesignJet 5000 and 5500 Series Printers Service Manual
Encoder Strip
Removal
WARNING Switch off the Printer and remove the Power Cord.
1. Remove the Left Hand Cover - Refer
to Page 8-6.
2. Remove the Right Hand Cover - Refer
to Page 8-10.
3. Remove the Top Cover - Refer to
Page 8-5.
4. Remove the Back Cover - Refer to
Page 8-23.
5. Remove the Top EMC Cover - Refer
to Page 8-32.

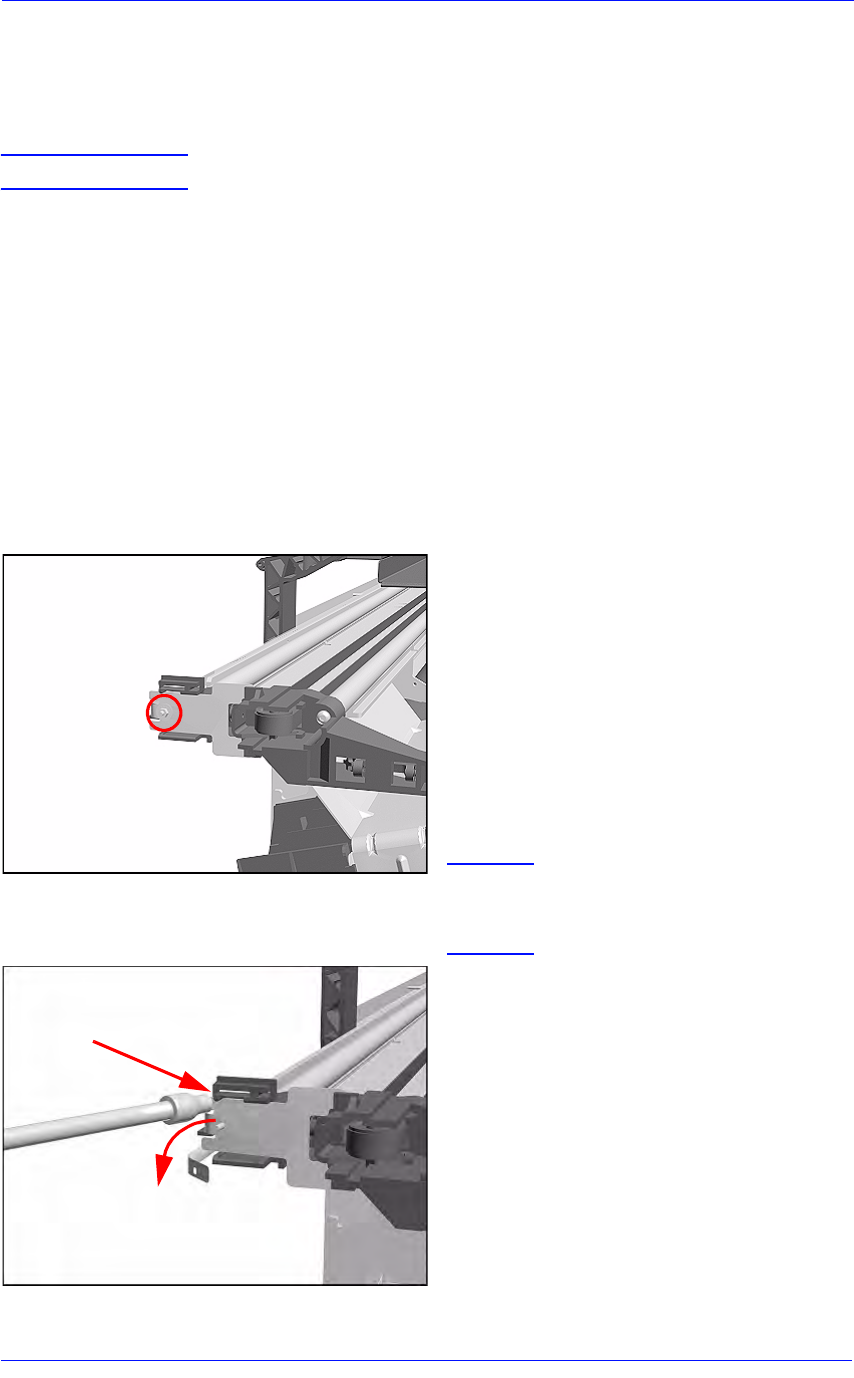

6. Remove the 5.5 mm nut from the left
hand side of the Printer that attaches
the Encoder Strip to the Spring Clip.
TIP The next step is performed
by putting pressure on the
Spring Clip as shown.
7. Release the Encoder strip from the
Spring Clip.
1. Apply Pressure
2. Release Encoder Strip
