Removal and Installation
8-54
HP DesignJet 5000 and 5500 Series Printers Service Manual

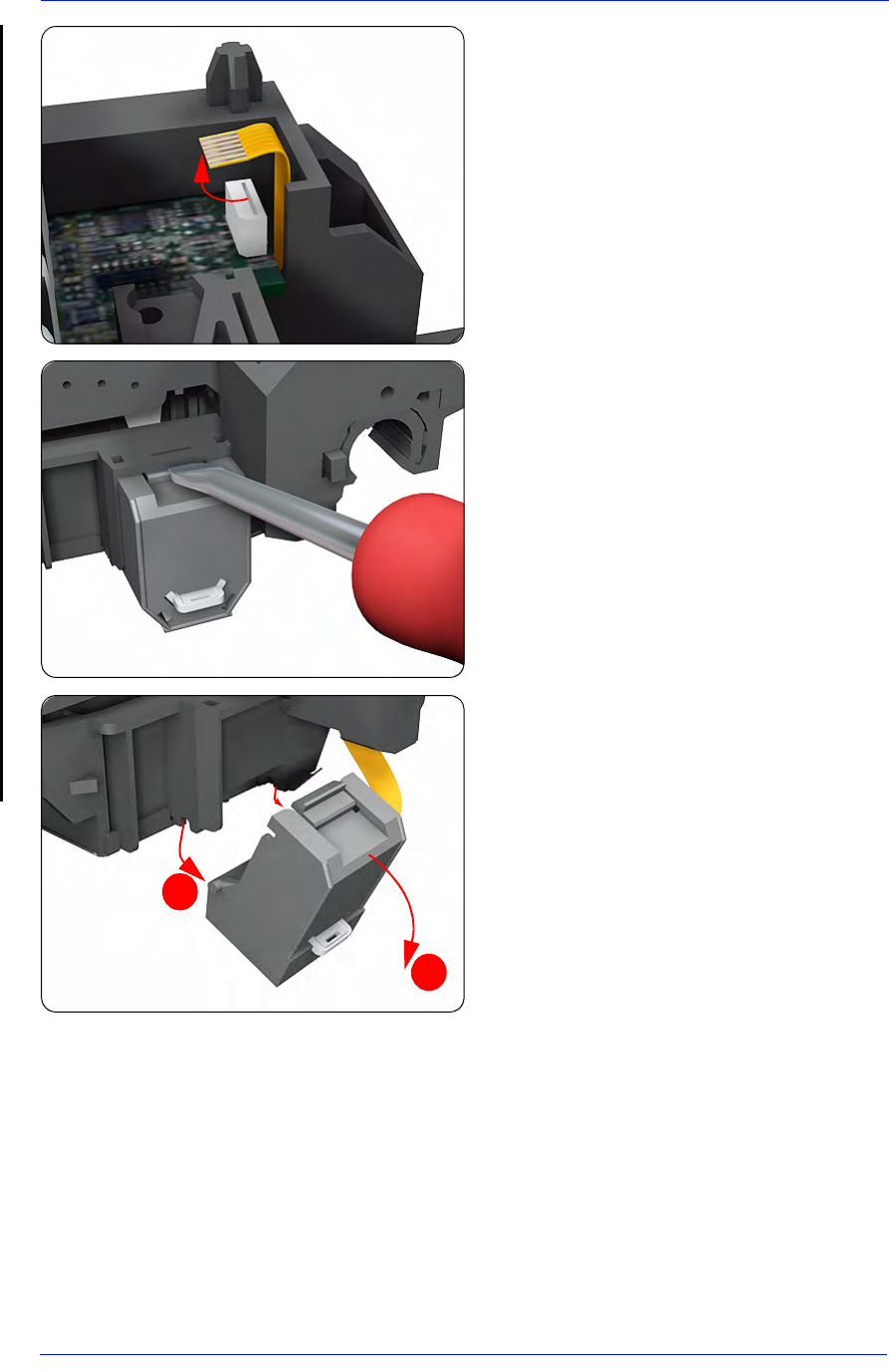

4. Disconnect the Line Sensor Connector
from the Carriage PCA.
5. Insert a flat screwdriver inside the
Line Sensor clip in order to release it.
6. Once the clip is released, rotate the
Line Sensor downwards so that the
locating pins on both sides are also
released.
