Removal and Installation
8-23
HP DesignJet 5000 and 5500 Series Printers Service Manual
Back Cover
Removal
WARNING Switch off the Printer and remove the Power Cord.
NOTE Refer to the table on Page 8-4 for information on screw types.

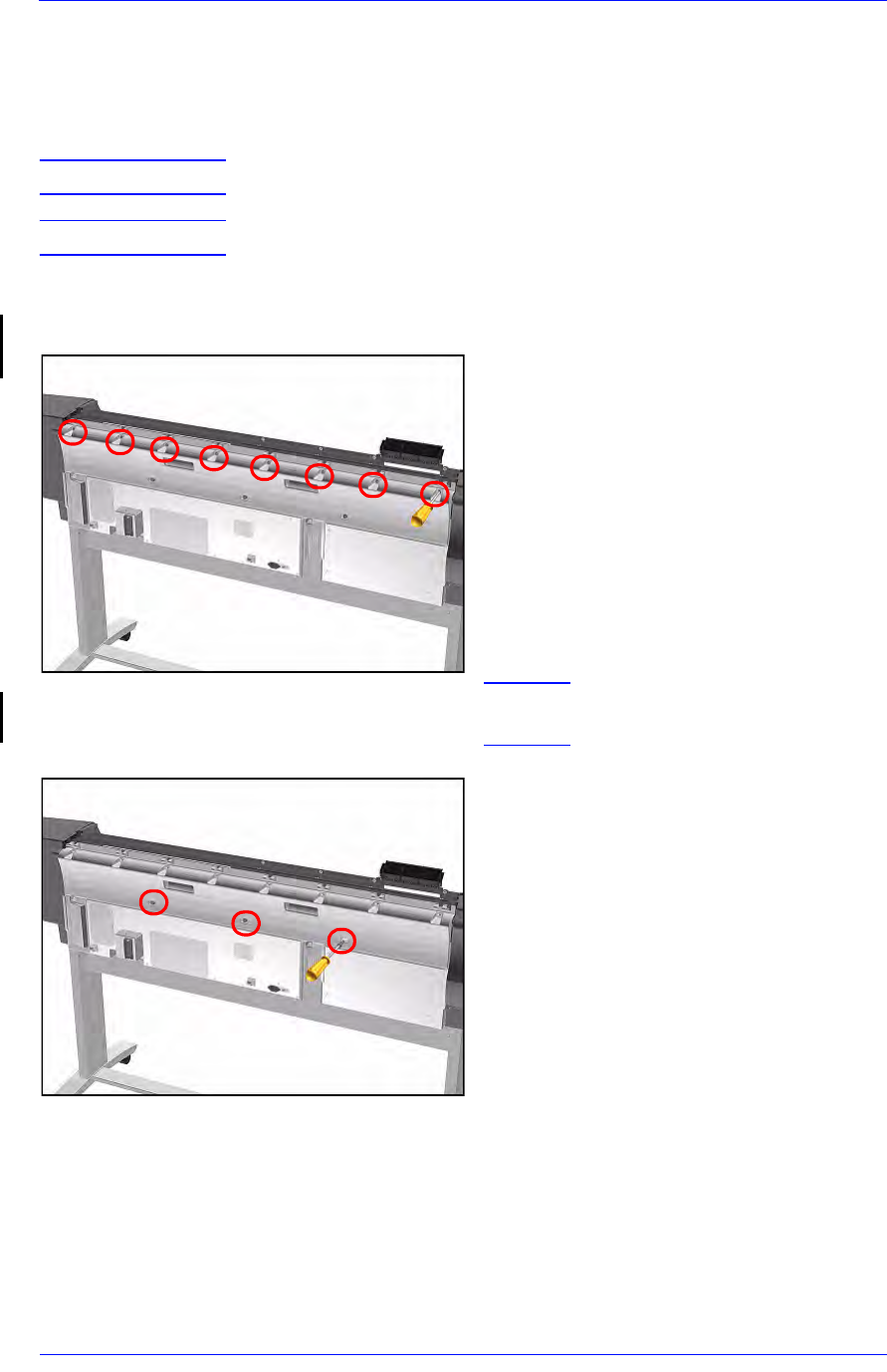

1. Remove the Top Cover - Refer to
Page 8-5.
2. Remove the following (Type B)
screws from the upper part of the
Back Cover:
8 Screws (T-15) for the 60" Model.
6 Screws (T-15) for the 42" Model.
NOTE Support the Back Cover as it
is released.
3. Remove 3 T-15 screws (Type N) from
the lower part of the Back Cover.
